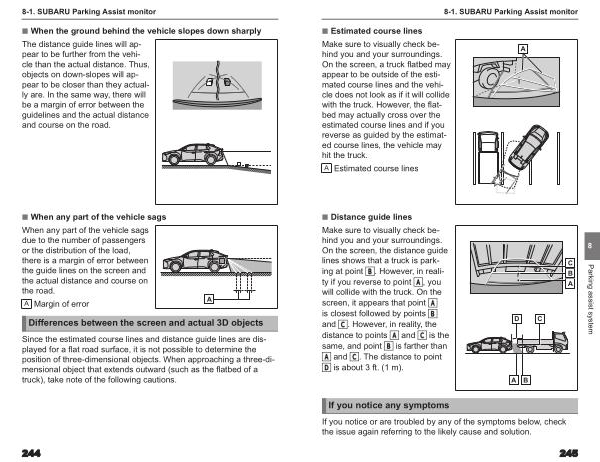

8-1 . SUBARU Parking Assist monitor
■ When the ground behind the vehicle slopes down sharply
The distance guide lines will appear to be further from the vehicle than the actual distance . Thus , objects on down-slopes will appear to be closer than they actually are . In the same way , there will be a margin of error between the guidelines and the actual distance and course on the road .
■ When any part of the vehicle sags
When any part of the vehicle sags due to the number of passengers or the distribution of the load , there is a margin of error between the guide lines on the screen and the actual distance and course on the road .
A Margin of error
Differences between the screen and actual 3D objects
Since the estimated course lines and distance guide lines are displayed for a flat road surface , it is not possible to determine the position of three-dimensional objects . When approaching a three-dimensional object that extends outward ( such as the flatbed of a truck ), take note of the following cautions .
244
