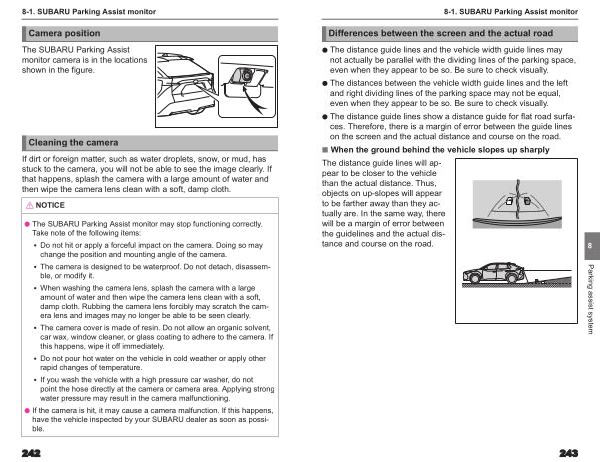

8-1 . SUBARU Parking Assist monitor
Camera position
The SUBARU Parking Assist monitor camera is in the locations shown in the figure .
Cleaning the camera
If dirt or foreign matter , such as water droplets , snow , or mud , has stuck to the camera , you will not be able to see the image clearly . If that happens , splash the camera with a large amount of water and then wipe the camera lens clean with a soft , damp cloth .
NOTICE
● The SUBARU Parking Assist monitor may stop functioning correctly . Take note of the following items :
• Do not hit or apply a forceful impact on the camera . Doing so may change the position and mounting angle of the camera .
• The camera is designed to be waterproof . Do not detach , disassemble , or modify it .
• When washing the camera lens , splash the camera with a large amount of water and then wipe the camera lens clean with a soft , damp cloth . Rubbing the camera lens forcibly may scratch the camera lens and images may no longer be able to be seen clearly .
• The camera cover is made of resin . Do not allow an organic solvent , car wax , window cleaner , or glass coating to adhere to the camera . If this happens , wipe it off immediately .
• Do not pour hot water on the vehicle in cold weather or apply other rapid changes of temperature .
• If you wash the vehicle with a high pressure car washer , do not point the hose directly at the camera or camera area . Applying strong water pressure may result in the camera malfunctioning .
● If the camera is hit , it may cause a camera malfunction . If this happens , have the vehicle inspected by your SUBARU dealer as soon as possible .
242
