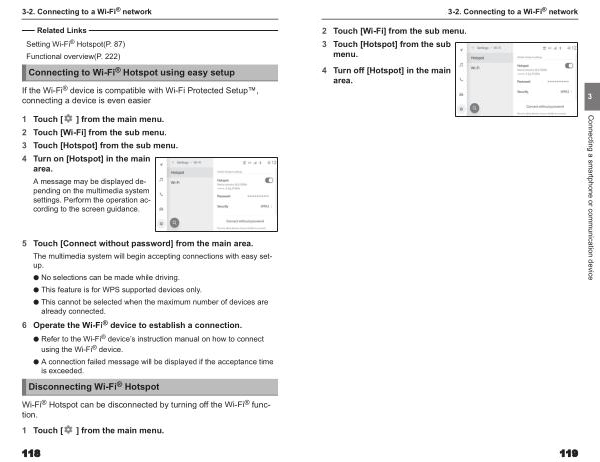

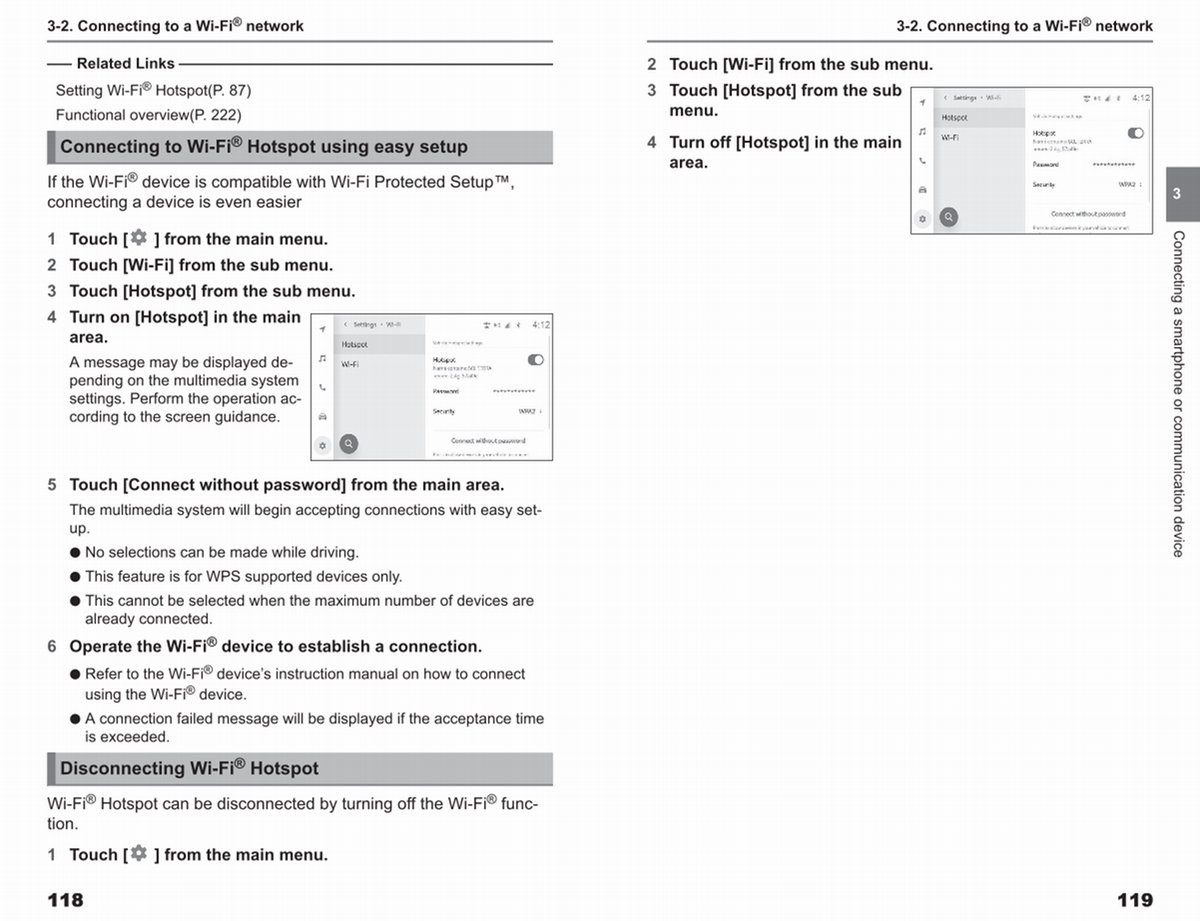

3-2 . Connecting to a Wi-Fi ® network
Related Links Setting Wi-Fi ® Hotspot ( P . 87 ) Functional overview ( P . 222 )
Connecting to Wi-Fi ® Hotspot using easy setup
If the Wi-Fi ® device is compatible with Wi-Fi Protected Setup™ , connecting a device is even easier
1 Touch [ ] from the main menu . 2 Touch [ Wi-Fi ] from the sub menu . 3 Touch [ Hotspot ] from the sub menu .
4 Turn on [ Hotspot ] in the main area .
A message may be displayed depending on the multimedia system settings . Perform the operation according to the screen guidance .
5 Touch [ Connect without password ] from the main area .
The multimedia system will begin accepting connections with easy setup .
● No selections can be made while driving .
● This feature is for WPS supported devices only .
● This cannot be selected when the maximum number of devices are already connected .
6 Operate the Wi-Fi ® device to establish a connection .
● Refer to the Wi-Fi ® device ’ s instruction manual on how to connect using the Wi-Fi ® device .
● A connection failed message will be displayed if the acceptance time is exceeded .
Disconnecting Wi-Fi ® Hotspot
Wi-Fi ® Hotspot can be disconnected by turning off the Wi-Fi ® function .
1 Touch [ ] from the main menu .
118
