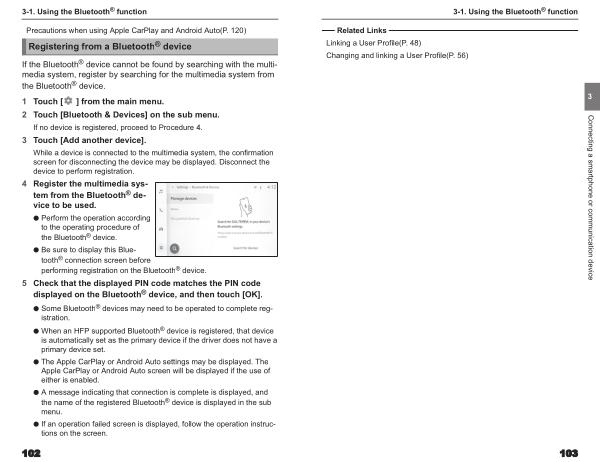

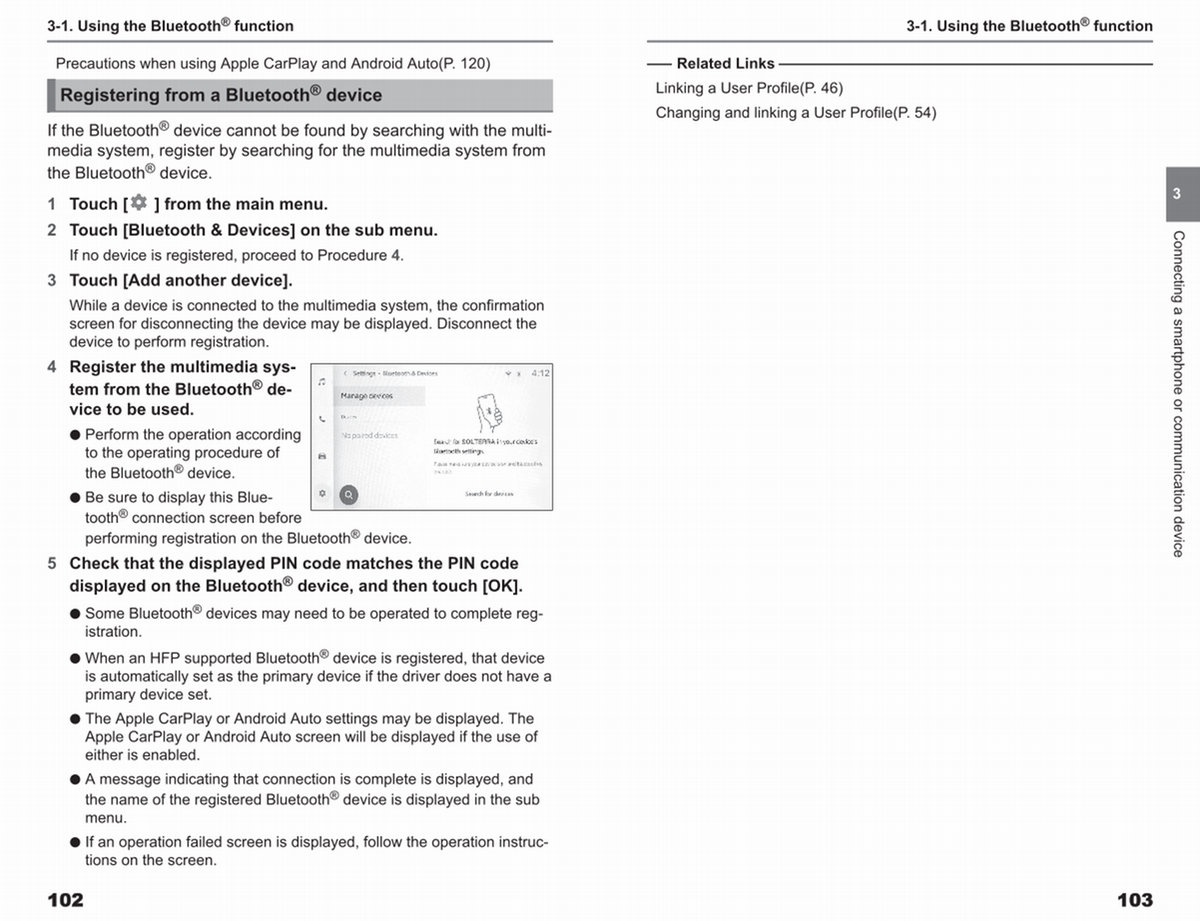

3-1 . Using the Bluetooth ® function
Precautions when using Apple CarPlay and Android Auto ( P . 120 )
Registering from a Bluetooth ® device
If the Bluetooth ® device cannot be found by searching with the multimedia system , register by searching for the multimedia system from the Bluetooth ® device .
1 Touch [ ] from the main menu . 2 Touch [ Bluetooth & Devices ] on the sub menu . If no device is registered , proceed to Procedure 4 .
3 Touch [ Add another device ].
While a device is connected to the multimedia system , the confirmation screen for disconnecting the device may be displayed . Disconnect the device to perform registration .
4 Register the multimedia system from the Bluetooth ® device to be used .
● Perform the operation according to the operating procedure of the Bluetooth ® device .
● Be sure to display this Bluetooth ® connection screen before performing registration on the Bluetooth ® device .
5 Check that the displayed PIN code matches the PIN code displayed on the Bluetooth ® device , and then touch [ OK ].
102
● Some Bluetooth ® devices may need to be operated to complete registration .
● When an HFP supported Bluetooth ® device is registered , that device is automatically set as the primary device if the driver does not have a primary device set .
● The Apple CarPlay or Android Auto settings may be displayed . The Apple CarPlay or Android Auto screen will be displayed if the use of either is enabled .
● A message indicating that connection is complete is displayed , and the name of the registered Bluetooth ® device is displayed in the sub menu .
● If an operation failed screen is displayed , follow the operation instructions on the screen .
