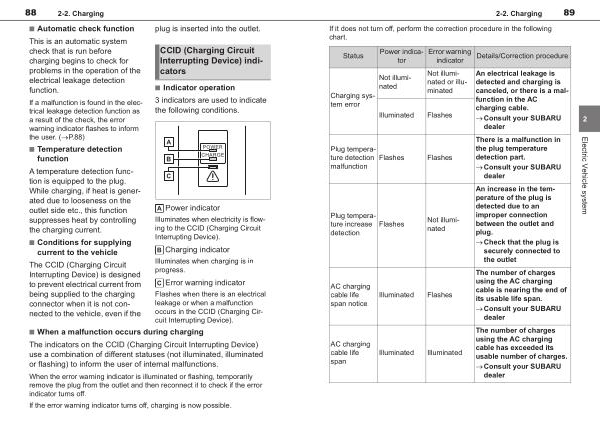

88 2-2 . Charging
■ Automatic check function
This is an automatic system check that is run before charging begins to check for problems in the operation of the electrical leakage detection function .
If a malfunction is found in the electrical leakage detection function as a result of the check , the error warning indicator flashes to inform the user . ( �P . 88 )
■ Temperature detection function
A temperature detection function is equipped to the plug . While charging , if heat is generated due to looseness on the outlet side etc ., this function suppresses heat by controlling the charging current .
■ Conditions for supplying current to the vehicle
The CCID ( Charging Circuit Interrupting Device ) is designed to prevent electrical current from being supplied to the charging connector when it is not connected to the vehicle , even if the plug is inserted into the outlet .
CCID ( Charging Circuit Interrupting Device ) indicators
■ Indicator operation
3 indicators are used to indicate the following conditions .
Power indicator
Illuminates when electricity is flowing to the CCID ( Charging Circuit Interrupting Device ).
Charging indicator
Illuminates when charging is in progress .
Error warning indicator
Flashes when there is an electrical leakage or when a malfunction occurs in the CCID ( Charging Circuit Interrupting Device ).
■ When a malfunction occurs during charging
The indicators on the CCID ( Charging Circuit Interrupting Device ) use a combination of different statuses ( not illuminated , illuminated or flashing ) to inform the user of internal malfunctions .
When the error warning indicator is illuminated or flashing , temporarily remove the plug from the outlet and then reconnect it to check if the error indicator turns off .
If the error warning indicator turns off , charging is now possible .
