2-2 . Charging
85

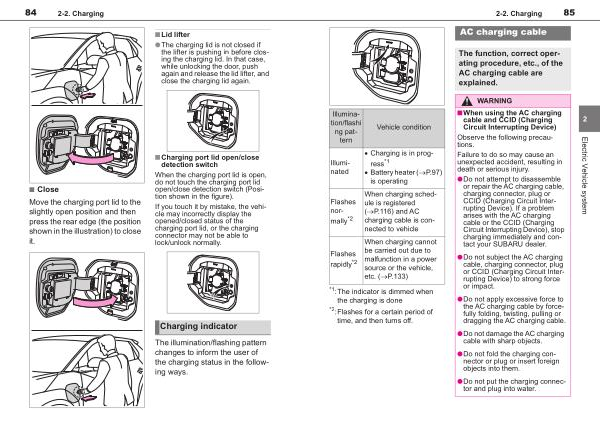

AC charging cable
The function , correct operating procedure , etc ., of the AC charging cable are explained .
Illumination / flashi ng pattern
Illuminated
Flashes normally * 2
Flashes rapidly * 2
Vehicle condition
� Charging is in progress * 1
� Battery heater ( �P . 97 ) is operating
When charging schedule is registered ( �P . 116 ) and AC charging cable is connected to vehicle
When charging cannot be carried out due to malfunction in a power source or the vehicle , etc . ( �P . 133 )
* 1 : The indicator is dimmed when the charging is done
* 2 : Flashes for a certain period of time , and then turns off .
WARNING
■ When using the AC charging cable and CCID ( Charging
Circuit Interrupting Device )
Observe the following precautions .
Failure to do so may cause an unexpected accident , resulting in death or serious injury .
●Do not attempt to disassemble or repair the AC charging cable , charging connector , plug or CCID ( Charging Circuit Interrupting Device ). If a problem arises with the AC charging cable or the CCID ( Charging Circuit Interrupting Device ), stop charging immediately and contact your SUBARU dealer .
●Do not subject the AC charging cable , charging connector , plug or CCID ( Charging Circuit Interrupting Device ) to strong force or impact .
●Do not apply excessive force to the AC charging cable by forcefully folding , twisting , pulling or dragging the AC charging cable .
●Do not damage the AC charging cable with sharp objects .
●Do not fold the charging connector or plug or insert foreign objects into them .
●Do not put the charging connector and plug into water .
2
Electric Vehicle system
