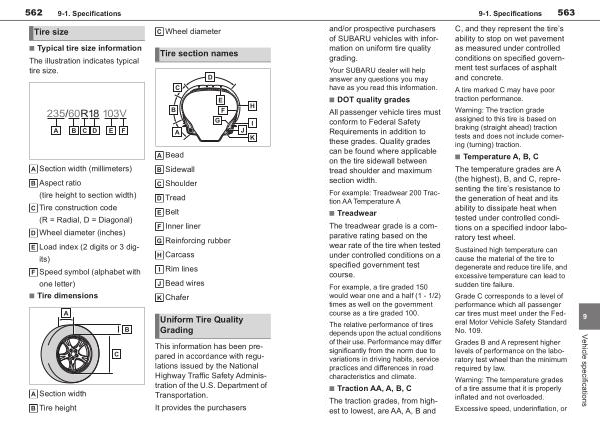

562 9-1 . Specifications
Tire size
■ Typical tire size information
The illustration indicates typical tire size .
Wheel diameter
Tire section names
Bead
Section width ( millimeters ) Aspect ratio ( tire height to section width ) Tire construction code ( R = Radial , D = Diagonal ) Wheel diameter ( inches ) Load index ( 2 digits or 3 digits ) Speed symbol ( alphabet with one letter )
■ Tire dimensions
Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer
Uniform Tire Quality Grading
Section width Tire height
This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U . S . Department of Transportation .
It provides the purchasers
