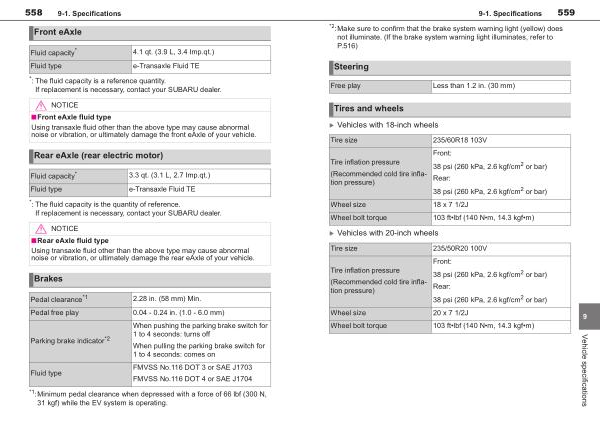

9-1 . Specifications
559
* 2 : Make sure to confirm that the brake system warning light ( yellow ) does
not illuminate . ( If the brake system warning light illuminates , refer to P . 516 )
Steering
Free play Less than 1.2 in . ( 30 mm )
Tires and wheels
� Vehicles with 18-inch wheels
Tire size 235 / 60R18 103V Front :
Tire inflation pressure
38 psi ( 260 kPa , 2.6 kgf / cm 2 or bar )
( Recommended cold tire inflation pressure )
Rear : 38 psi ( 260 kPa , 2.6 kgf / cm 2 or bar )
Wheel size
18 x 7 1 / 2J Wheel bolt torque 103 ft • lbf ( 140 N • m , 14.3 kgf • m )
� Vehicles with 20-inch wheels
Tire size 235 / 50R20 100V Front :
Tire inflation pressure
38 psi ( 260 kPa , 2.6 kgf / cm 2 or bar )
( Recommended cold tire inflation pressure )
Rear : 38 psi ( 260 kPa , 2.6 kgf / cm 2 or bar )
Wheel size
20 x 7 1 / 2J Wheel bolt torque 103 ft • lbf ( 140 N • m , 14.3 kgf • m )
9
Vehicle specifications
