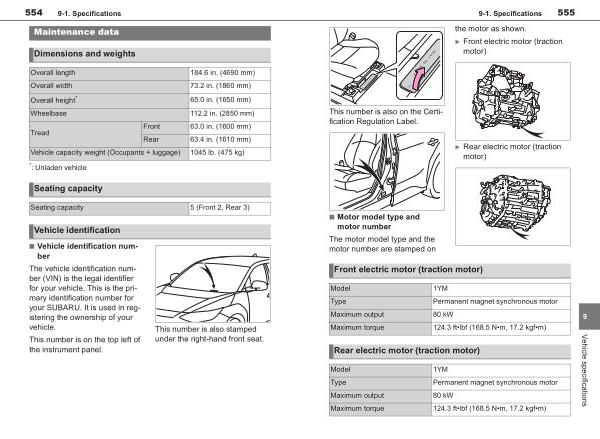

9-1 . Specifications
555 the motor as shown .
� Front electric motor ( traction motor )
This number is also on the Certification Regulation Label .
� Rear electric motor ( traction motor )
■ Motor model type and motor number
The motor model type and the motor number are stamped on
Front electric motor ( traction motor )
Model |
1YM |
Type |
Permanent magnet synchronous motor |
Maximum output |
80 kW |
Maximum torque |
124.3 ft • lbf ( 168.5 N • m , 17.2 kgf • m ) |
9
Rear electric motor ( traction motor )
Model |
1YM |
Type |
Permanent magnet synchronous motor |
Maximum output |
80 kW |
Maximum torque |
124.3 ft • lbf ( 168.5 N • m , 17.2 kgf • m ) |
Vehicle specifications
