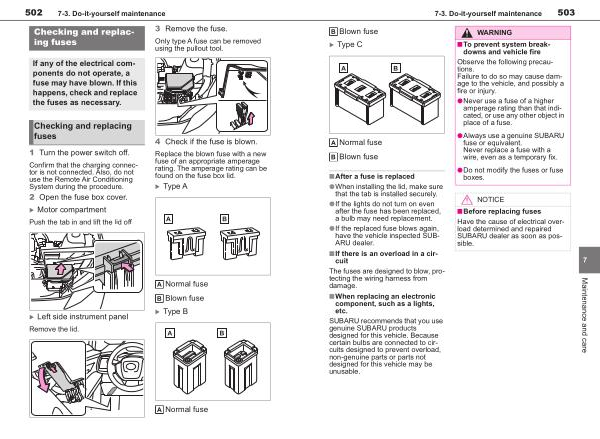

502 7-3 . Do-it-yourself maintenance
Checking and replacing fuses
3 Remove the fuse . Only type A fuse can be removed using the pullout tool .
If any of the electrical components do not operate , a fuse may have blown . If this happens , check and replace the fuses as necessary .
Checking and replacing fuses
1 Turn the power switch off .
Confirm that the charging connector is not connected . Also , do not use the Remote Air Conditioning System during the procedure .
2 Open the fuse box cover .
� Motor compartment Push the tab in and lift the lid off .
4 Check if the fuse is blown .
Replace the blown fuse with a new fuse of an appropriate amperage rating . The amperage rating can be found on the fuse box lid .
� Type A
� Left side instrument panel Remove the lid .
Normal fuse Blown fuse
� Type B
Normal fuse
