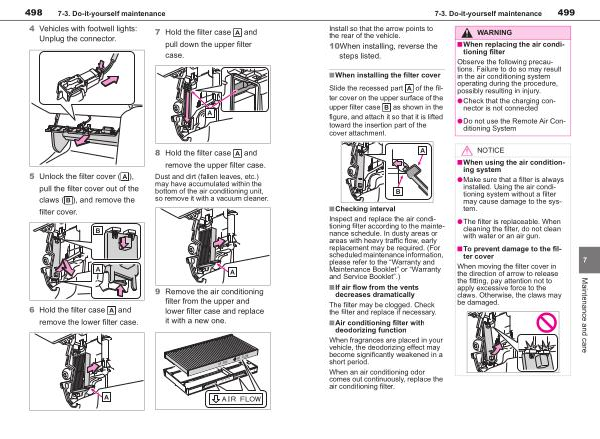

7-3 . Do-it-yourself maintenance
499
Install so that the arrow points to the rear of the vehicle .
10When installing , reverse the steps listed .
■ When installing the filter cover
Slide the recessed part of the filter cover on the upper surface of the upper filter case as shown in the
figure , and attach it so that it is lifted toward the insertion part of the cover attachment .
■ Checking interval
Inspect and replace the air conditioning filter according to the maintenance schedule . In dusty areas or areas with heavy traffic flow , early replacement may be required . ( For scheduled maintenance information , please refer to the “ Warranty and Maintenance Booklet ” or “ Warranty and Service Booklet ”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged . Check the filter and replace if necessary .
■ Air conditioning filter with deodorizing function
When fragrances are placed in your vehicle , the deodorizing effect may become significantly weakened in a short period .
When an air conditioning odor comes out continuously , replace the air conditioning filter .
WARNING
■ When replacing the air conditioning filter
Observe the following precautions . Failure to do so may result in the air conditioning system operating during the procedure ,
possibly resulting in injury .
●Check that the charging connector is not connected
●Do not use the Remote Air Conditioning System
NOTICE
■ When using the air conditioning system
●Make sure that a filter is always installed . Using the air conditioning system without a filter may cause damage to the system .
●The filter is replaceable . When cleaning the filter , do not clean with water or an air gun .
■ To prevent damage to the filter cover
When moving the filter cover in the direction of arrow to release the fitting , pay attention not to apply excessive force to the
claws . Otherwise , the claws may be damaged .
7
Maintenance and care
