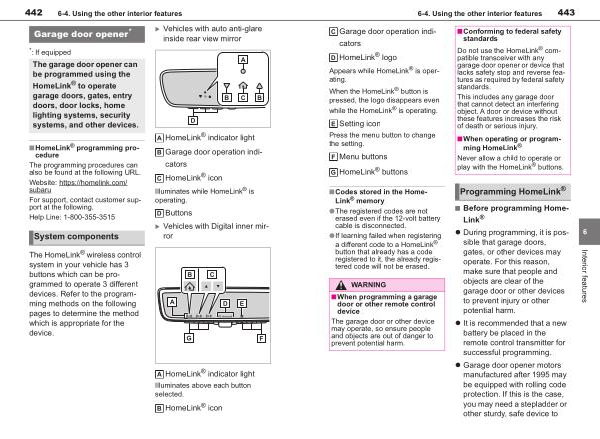

6-4 . Using the other interior features
443
Garage door operation indicators HomeLink ® logo
Appears while HomeLink ® is operating .
When the HomeLink ® button is pressed , the logo disappears even
while the HomeLink ® is operating . Setting icon
Press the menu button to change the setting .
Menu buttons HomeLink ® buttons
■ Codes stored in the Home- Link ® memory
●The registered codes are not
erased even if the 12-volt battery cable is disconnected .
●If learning failed when registering a different code to a HomeLink ® button that already has a code
registered to it , the already registered code will not be erased .
WARNING
■ When programming a garage door or other remote control device
The garage door or other device may operate , so ensure people
and objects are out of danger to prevent potential harm .
■ Conforming to federal safety standards
Do not use the HomeLink ® compatible transceiver with any garage door opener or device that lacks safety stop and reverse features as required by federal safety standards .
This includes any garage door that cannot detect an interfering object . A door or device without
these features increases the risk of death or serious injury .
■ When operating or programming HomeLink ®
Never allow a child to operate or play with the HomeLink ® buttons .
Programming HomeLink ®
■ Before programming Home-
Link ®
• During programming , it is possible that garage doors , gates , or other devices may operate . For this reason , make sure that people and objects are clear of the garage door or other devices to prevent injury or other potential harm .
• It is recommended that a new battery be placed in the remote control transmitter for successful programming .
• Garage door opener motors manufactured after 1995 may be equipped with rolling code protection . If this is the case , you may need a stepladder or other sturdy , safe device to
6
Interior features
