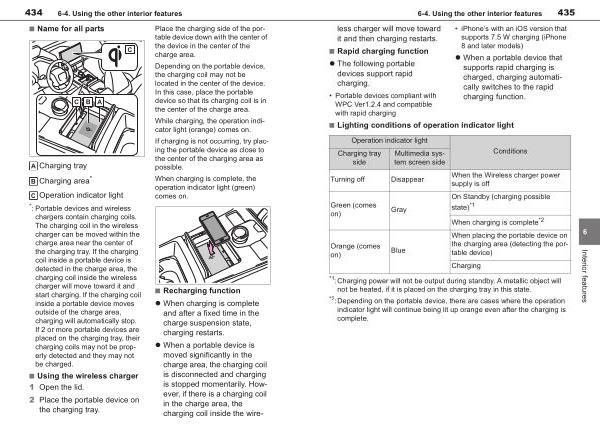

434 6-4 . Using the other interior features
■ Name for all parts
Charging tray Charging area * Operation indicator light * : Portable devices and wireless
chargers contain charging coils . The charging coil in the wireless charger can be moved within the charge area near the center of the charging tray . If the charging coil inside a portable device is detected in the charge area , the charging coil inside the wireless charger will move toward it and start charging . If the charging coil inside a portable device moves outside of the charge area , charging will automatically stop . If 2 or more portable devices are placed on the charging tray , their charging coils may not be properly detected and they may not be charged .
■ Using the wireless charger 1 Open the lid .
2 Place the portable device on the charging tray .
Place the charging side of the portable device down with the center of the device in the center of the charge area .
Depending on the portable device , the charging coil may not be located in the center of the device . In this case , place the portable device so that its charging coil is in the center of the charge area .
While charging , the operation indicator light ( orange ) comes on .
If charging is not occurring , try placing the portable device as close to the center of the charging area as possible .
When charging is complete , the operation indicator light ( green ) comes on .
■ Recharging function
• When charging is complete and after a fixed time in the charge suspension state , charging restarts .
• When a portable device is moved significantly in the charge area , the charging coil is disconnected and charging is stopped momentarily . However , if there is a charging coil in the charge area , the charging coil inside the wire-
