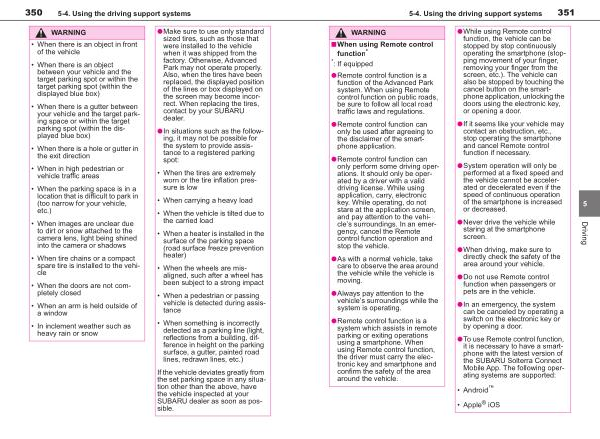

350 5-4 . Using the driving support systems
WARNING
• When there is an object in front of the vehicle
• When there is an object between your vehicle and the target parking spot or within the
target parking spot ( within the displayed blue box )
• When there is a gutter between your vehicle and the target parking space or within the target parking spot ( within the displayed blue box )
• When there is a hole or gutter in the exit direction
• When in high pedestrian or vehicle traffic areas
• When the parking space is in a location that is difficult to park in ( too narrow for your vehicle , etc .)
• When images are unclear due to dirt or snow attached to the camera lens , light being shined into the camera or shadows
• When tire chains or a compact spare tire is installed to the vehicle
• When the doors are not completely closed
• When an arm is held outside of a window
• In inclement weather such as heavy rain or snow
●Make sure to use only standard sized tires , such as those that were installed to the vehicle when it was shipped from the factory . Otherwise , Advanced Park may not operate properly . Also , when the tires have been replaced , the displayed position
of the lines or box displayed on the screen may become incorrect . When replacing the tires ,
contact by your SUBARU dealer .
●In situations such as the following , it may not be possible for
the system to provide assistance to a registered parking spot :
• When the tires are extremely
worn or the tire inflation pressure is low
• When carrying a heavy load
• When the vehicle is tilted due to the carried load
• When a heater is installed in the
surface of the parking space ( road surface freeze prevention heater )
• When the wheels are misaligned , such after a wheel has been subject to a strong impact
• When a pedestrian or passing vehicle is detected during assistance
• When something is incorrectly detected as a parking line ( light , reflections from a building , difference in height on the parking surface , a gutter , painted road lines , redrawn lines , etc .)
If the vehicle deviates greatly from the set parking space in any situation other than the above , have
the vehicle inspected at your SUBARU dealer as soon as possible .
