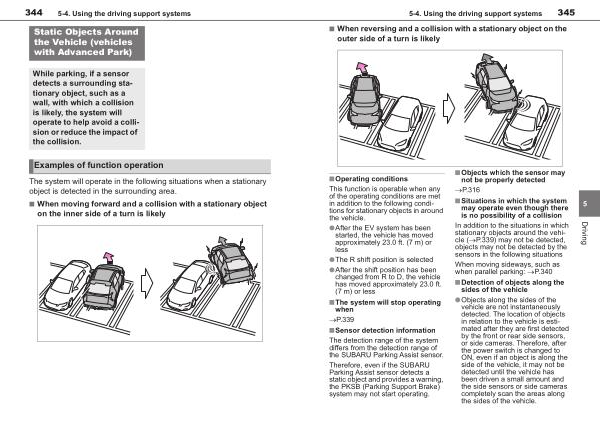

5-4 . Using the driving support systems
345
■ When reversing and a collision with a stationary object on the outer side of a turn is likely
■ Operating conditions
This function is operable when any of the operating conditions are met in addition to the following conditions for stationary objects in around the vehicle .
●After the EV system has been started , the vehicle has moved approximately 23.0 ft . ( 7 m ) or less
●The R shift position is selected
●After the shift position has been changed from R to D , the vehicle has moved approximately 23.0 ft .
( 7 m ) or less
■ The system will stop operating when
�P . 339
■ Sensor detection information
The detection range of the system differs from the detection range of the SUBARU Parking Assist sensor .
Therefore , even if the SUBARU Parking Assist sensor detects a static object and provides a warning , the PKSB ( Parking Support Brake ) system may not start operating .
■ Objects which the sensor may not be properly detected
�P . 316
■ Situations in which the system may operate even though there is no possibility of a collision
In addition to the situations in which stationary objects around the vehicle ( �P . 339 ) may not be detected , objects may not be detected by the sensors in the following situations
When moving sideways , such as when parallel parking : �P . 340
■ Detection of objects along the sides of the vehicle
●Objects along the sides of the vehicle are not instantaneously detected . The location of objects
in relation to the vehicle is estimated after they are first detected by the front or rear side sensors ,
or side cameras . Therefore , after the power switch is changed to ON , even if an object is along the side of the vehicle , it may not be detected until the vehicle has been driven a small amount and the side sensors or side cameras completely scan the areas along the sides of the vehicle .
