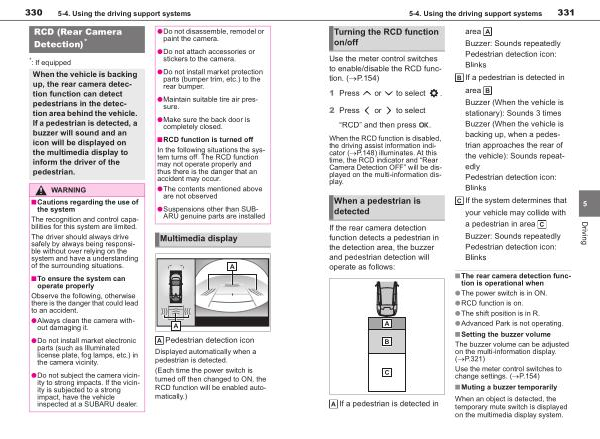

5-4 . Using the driving support systems
331
Turning the RCD function on / off
Use the meter control switches to enable / disable the RCD function . ( �P . 154 )
1 Press or to select . 2 Press or to select
“ RCD ” and then press .
When the RCD function is disabled ,
the driving assist information indicator ( �P . 148 ) illuminates . At this time , the RCD indicator and “ Rear Camera Detection OFF ” will be displayed on the multi-information display .
When a pedestrian is detected
If the rear camera detection function detects a pedestrian in the detection area , the buzzer and pedestrian detection will operate as follows :
If a pedestrian is detected in area Buzzer : Sounds repeatedly Pedestrian detection icon : Blinks If a pedestrian is detected in area Buzzer ( When the vehicle is stationary ): Sounds 3 times Buzzer ( When the vehicle is backing up , when a pedestrian approaches the rear of the vehicle ): Sounds repeatedly Pedestrian detection icon : Blinks If the system determines that your vehicle may collide with a pedestrian in area Buzzer : Sounds repeatedly Pedestrian detection icon : Blinks
■ The rear camera detection function is operational when
●The power switch is in ON . ●RCD function is on . ●The shift position is in R .
● Advanced Park is not operating .
■ Setting the buzzer volume
The buzzer volume can be adjusted on the multi-information display . ( �P . 321 )
Use the meter control switches to change settings . ( �P . 154 )
■ Muting a buzzer temporarily
When an object is detected , the temporary mute switch is displayed on the multimedia display system .
5
Driving
