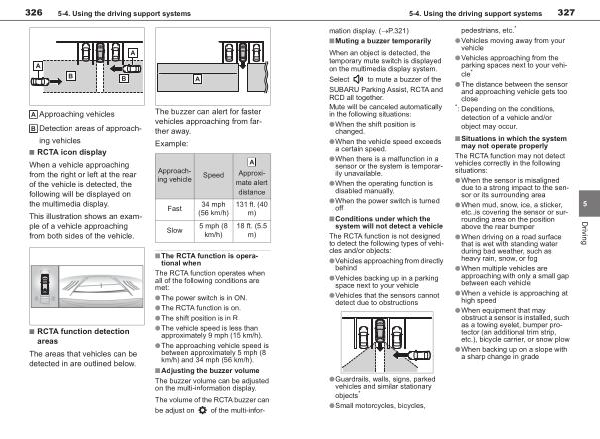

326 5-4 . Using the driving support systems
Approaching vehicles Detection areas of approaching vehicles
■ RCTA icon display
When a vehicle approaching from the right or left at the rear of the vehicle is detected , the following will be displayed on the multimedia display .
This illustration shows an example of a vehicle approaching from both sides of the vehicle .
The buzzer can alert for faster vehicles approaching from farther away .
Example :
■ The RCTA function is operational when
The RCTA function operates when all of the following conditions are met :
●The power switch is in ON . ●The RCTA function is on . ●The shift position is in R . ●The vehicle speed is less than approximately 9 mph ( 15 km / h ).
●The approaching vehicle speed is between approximately 5 mph ( 8 km / h ) and 34 mph ( 56 km / h ).
■ Adjusting the buzzer volume The buzzer volume can be adjusted on the multi-information display .
The volume of the RCTA buzzer can be adjust on of the multi-infor-
Approaching vehicle
Fast
Slow
Speed
34 mph ( 56 km / h )
5 mph ( 8 km / h )
Approximate alert distance
131 ft . ( 40 m )
18 ft . ( 5.5 m )
■ RCTA function detection areas
The areas that vehicles can be detected in are outlined below .
