5-4 . Using the driving support systems
323

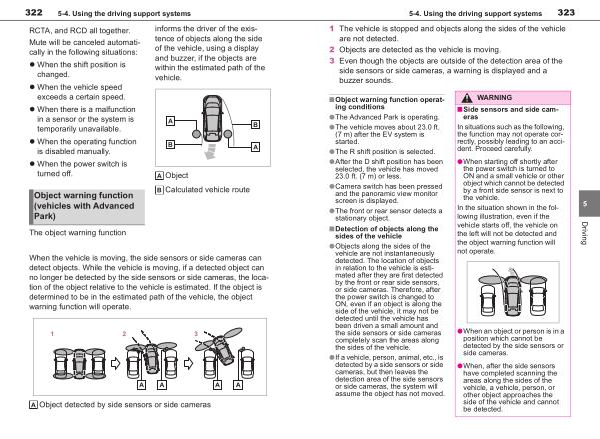

1 The vehicle is stopped and objects along the sides of the vehicle are not detected . 2 Objects are detected as the vehicle is moving . 3 Even though the objects are outside of the detection area of the side sensors or side cameras , a warning is displayed and a buzzer sounds .
■ Object warning function operating conditions
● The Advanced Park is operating .
●The vehicle moves about 23.0 ft . ( 7 m ) after the EV system is started .
●The R shift position is selected .
●After the D shift position has been selected , the vehicle has moved 23.0 ft . ( 7 m ) or less .
●Camera switch has been pressed and the panoramic view monitor screen is displayed .
●The front or rear sensor detects a stationary object .
■ Detection of objects along the sides of the vehicle
●Objects along the sides of the
vehicle are not instantaneously detected . The location of objects in relation to the vehicle is estimated after they are first detected by the front or rear side sensors , or side cameras . Therefore , after
the power switch is changed to ON , even if an object is along the side of the vehicle , it may not be
detected until the vehicle has been driven a small amount and the side sensors or side cameras
completely scan the areas along the sides of the vehicle .
●If a vehicle , person , animal , etc ., is detected by a side sensors or side cameras , but then leaves the detection area of the side sensors or side cameras , the system will assume the object has not moved .
WARNING
■ Side sensors and side cameras
In situations such as the following , the function may not operate correctly , possibly leading to an accident . Proceed carefully .
●When starting off shortly after the power switch is turned to ON and a small vehicle or other object which cannot be detected by a front side sensor is next to the vehicle .
In the situation shown in the following illustration , even if the vehicle starts off , the vehicle on the left will not be detected and the object warning function will not operate .
●When an object or person is in a position which cannot be detected by the side sensors or side cameras .
●When , after the side sensors have completed scanning the areas along the sides of the vehicle , a vehicle , person , or
other object approaches the side of the vehicle and cannot be detected .
