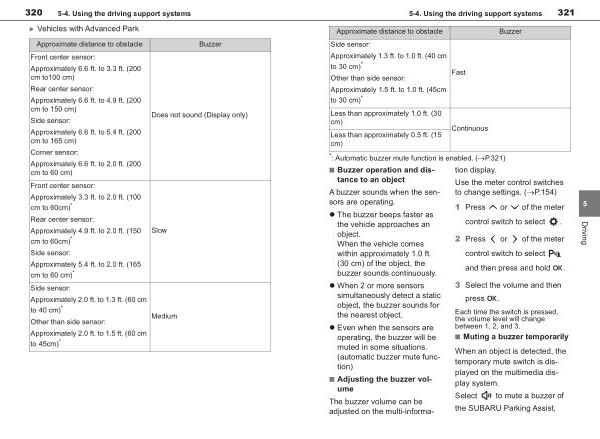

5-4 . Using the driving support systems
321
Approximate distance to obstacle Side sensor : Approximately 1.3 ft . to 1.0 ft . ( 40 cm to 30 cm ) * Other than side sensor : Approximately 1.5 ft . to 1.0 ft . ( 45cm to 30 cm ) *
Less than approximately 1.0 ft . ( 30 cm )
Less than approximately 0.5 ft . ( 15 cm )
Fast
Continuous
Buzzer
* : Automatic buzzer mute function is enabled . ( �P . 321 )
■ Buzzer operation and distance to an object
A buzzer sounds when the sensors are operating .
• The buzzer beeps faster as the vehicle approaches an object . When the vehicle comes within approximately 1.0 ft . ( 30 cm ) of the object , the buzzer sounds continuously .
• When 2 or more sensors simultaneously detect a static object , the buzzer sounds for the nearest object .
• Even when the sensors are operating , the buzzer will be muted in some situations . ( automatic buzzer mute function )
■ Adjusting the buzzer volume
The buzzer volume can be adjusted on the multi-information display .
Use the meter control switches to change settings . ( �P . 154 )
1 Press or of the meter control switch to select .
2 Press or of the meter control switch to select and then press and hold .
3 Select the volume and then press .
Each time the switch is pressed , the volume level will change between 1 , 2 , and 3 .
■ Muting a buzzer temporarily
When an object is detected , the temporary mute switch is displayed on the multimedia display system . Select to mute a buzzer of the SUBARU Parking Assist ,
5
Driving
