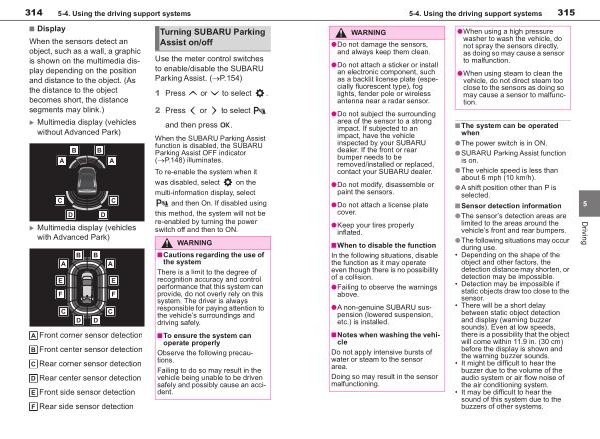

314 5-4 . Using the driving support systems
■ Display
When the sensors detect an object , such as a wall , a graphic is shown on the multimedia display depending on the position and distance to the object . ( As the distance to the object becomes short , the distance segments may blink .)
� Multimedia display ( vehicles without Advanced Park )
� Multimedia display ( vehicles with Advanced Park )
Turning SUBARU Parking Assist on / off
Use the meter control switches to enable / disable the SUBARU Parking Assist . ( �P . 154 )
1 Press or to select . 2 Press or to select and then press .
When the SUBARU Parking Assist
function is disabled , the SUBARU Parking Assist OFF indicator ( �P . 148 ) illuminates .
To re-enable the system when it was disabled , select on the multi-information display , select and then On . If disabled using
this method , the system will not be re-enabled by turning the power switch off and then to ON .
WARNING
■ Cautions regarding the use of the system
There is a limit to the degree of recognition accuracy and control
performance that this system can provide , do not overly rely on this system . The driver is always
responsible for paying attention to the vehicle ’ s surroundings and driving safely .
Front corner sensor detection Front center sensor detection Rear corner sensor detection Rear center sensor detection Front side sensor detection
■ To ensure the system can operate properly
Observe the following precautions .
Failing to do so may result in the vehicle being unable to be driven safely and possibly cause an accident .
Rear side sensor detection
