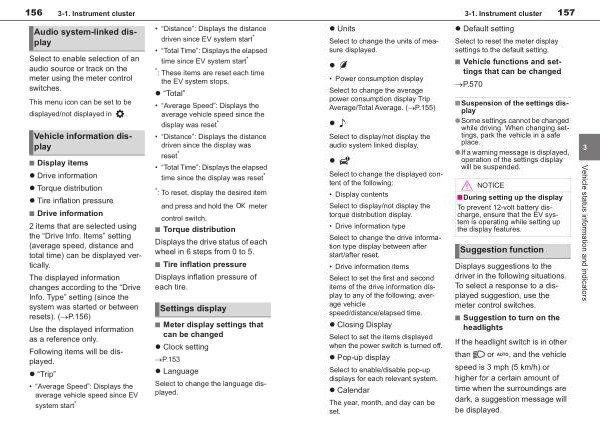

156 3-1 . Instrument cluster
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the meter control switches .
This menu icon can be set to be displayed / not displayed in .
Vehicle information display
■ Display items
• Drive information
• Torque distribution
• Tire inflation pressure
■ Drive information
2 items that are selected using the “ Drive Info . Items ” setting ( average speed , distance and total time ) can be displayed vertically .
The displayed information changes according to the “ Drive Info . Type ” setting ( since the system was started or between resets ). ( �P . 156 )
Use the displayed information as a reference only .
Following items will be displayed .
• “ Trip ”
• “ Average Speed ”: Displays the average vehicle speed since EV
system start *
• “ Distance ”: Displays the distance driven since EV system start *
• “ Total Time ”: Displays the elapsed time since EV system start * * : These items are reset each time the EV system stops .
• “ Total ”
• “ Average Speed ”: Displays the average vehicle speed since the
display was reset *
• “ Distance ”: Displays the distance driven since the display was reset *
• “ Total Time ”: Displays the elapsed time since the display was reset *
* : To reset , display the desired item
and press and hold the meter control switch .
■ Torque distribution
Displays the drive status of each wheel in 6 steps from 0 to 5 .
■ Tire inflation pressure
Displays inflation pressure of each tire .
Settings display
■ Meter display settings that can be changed
• Clock setting �P . 153
• Language
Select to change the language displayed .
