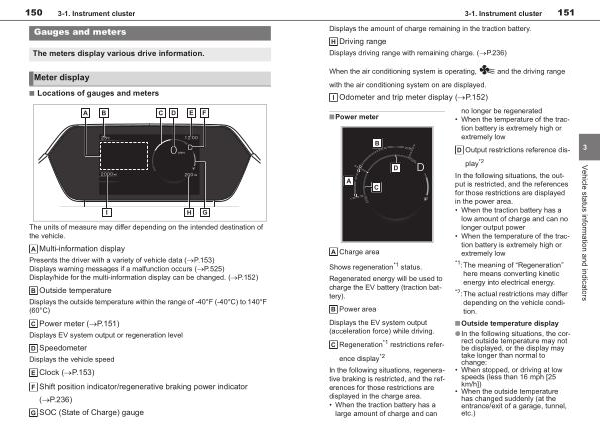

3-1 . Instrument cluster
151
Displays the amount of charge remaining in the traction battery .
Driving range Displays driving range with remaining charge . ( �P . 236 )
When the air conditioning system is operating , and the driving range with the air conditioning system on are displayed . Odometer and trip meter display ( �P . 152 )
■ Power meter no longer be regenerated
• When the temperature of the traction battery is extremely high or extremely low
3
Charge area
Shows regeneration * 1 status .
Regenerated energy will be used to charge the EV battery ( traction battery ).
Power area
Displays the EV system output ( acceleration force ) while driving .
Regeneration * 1 restrictions reference display * 2
In the following situations , regenerative braking is restricted , and the references for those restrictions are displayed in the charge area .
• When the traction battery has a large amount of charge and can
Output restrictions reference display * 2
In the following situations , the output is restricted , and the references for those restrictions are displayed in the power area .
• When the traction battery has a low amount of charge and can no longer output power
• When the temperature of the traction battery is extremely high or extremely low
* 1 : The meaning of “ Regeneration ”
here means converting kinetic energy into electrical energy .
* 2 : The actual restrictions may differ
depending on the vehicle condition .
■ Outside temperature display
● In the following situations , the correct outside temperature may not be displayed , or the display may take longer than normal to change :
• When stopped , or driving at low speeds ( less than 16 mph [ 25 km / h ])
• When the outside temperature has changed suddenly ( at the entrance / exit of a garage , tunnel ,
etc .)
Vehicle status information and indicators
