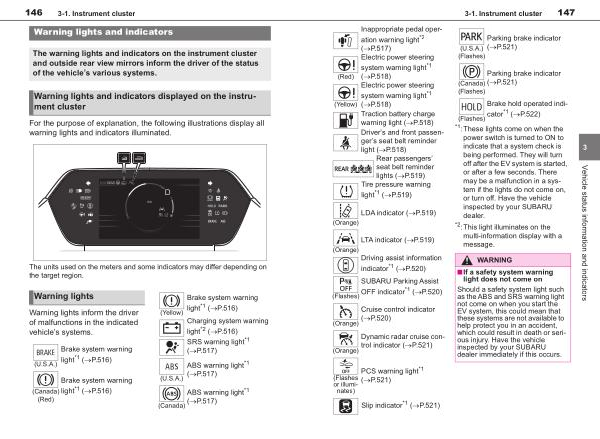

3-1 . Instrument cluster
147
( Red )
( Yellow )
Inappropriate pedal operation warning light * 2 ( �P . 517 ) Electric power steering
system warning light * 1 ( �P . 518 ) Electric power steering
system warning light * 1 ( �P . 518 ) Traction battery charge warning light ( �P . 518 ) Driver ’ s and front passenger ’ s seat belt reminder light ( �P . 518 ) Rear passengers ’ seat belt reminder lights ( �P . 519 ) Tire pressure warning
light * 1 ( �P . 519 )
LDA indicator ( �P . 519 )
( Orange )
LTA indicator ( �P . 519 )
( Orange ) Driving assist information indicator * 1 ( �P . 520 )
SUBARU Parking Assist
OFF indicator * 1 ( �P . 520 ) ( Flashes )
( Orange )
( Orange )
Cruise control indicator ( �P . 520 )
Dynamic radar cruise control indicator ( �P . 521 )
PCS warning light * 1 ( Flashes ( �P . 521 ) or illuminates )
Slip indicator * 1 ( �P . 521 )
Parking brake indicator
( U . S . A .) ( �P . 521 ) ( Flashes )
Parking brake indicator
( Canada ) ( �P . 521 ) ( Flashes )
Brake hold operated indicator * 1 ( �P . 522 ) ( Flashes ) * 1 : These lights come on when the
power switch is turned to ON to indicate that a system check is being performed . They will turn off after the EV system is started , or after a few seconds . There may be a malfunction in a system if the lights do not come on , or turn off . Have the vehicle inspected by your SUBARU dealer .
* 2 : This light illuminates on the
multi-information display with a message .
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light
not come on when you start the EV system , this could mean that these systems are not available to
help protect you in an accident , which could result in death or serious injury . Have the vehicle
inspected by your SUBARU dealer immediately if this occurs .
3
Vehicle status information and indicators
