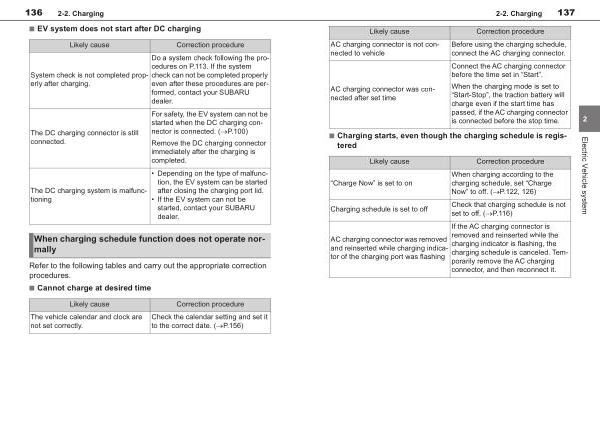

2-2 . Charging
137
Likely cause
AC charging connector is not connected to vehicle
AC charging connector was connected after set time
Correction procedure
Before using the charging schedule , connect the AC charging connector .
Connect the AC charging connector before the time set in “ Start ”.
When the charging mode is set to “ Start-Stop ”, the traction battery will charge even if the start time has passed , if the AC charging connector is connected before the stop time .
2
■ Charging starts , even though the charging schedule is registered
Likely cause
“ Charge Now ” is set to on
Charging schedule is set to off
AC charging connector was removed and reinserted while charging indicator of the charging port was flashing
Correction procedure
When charging according to the charging schedule , set “ Charge Now ” to off . ( �P . 122 , 126 )
Check that charging schedule is not set to off . ( �P . 116 )
If the AC charging connector is removed and reinserted while the charging indicator is flashing , the charging schedule is canceled . Temporarily remove the AC charging connector , and then reconnect it .
Electric Vehicle system
