94
SEAT, SEATBELT AND SRS AIRBAGS

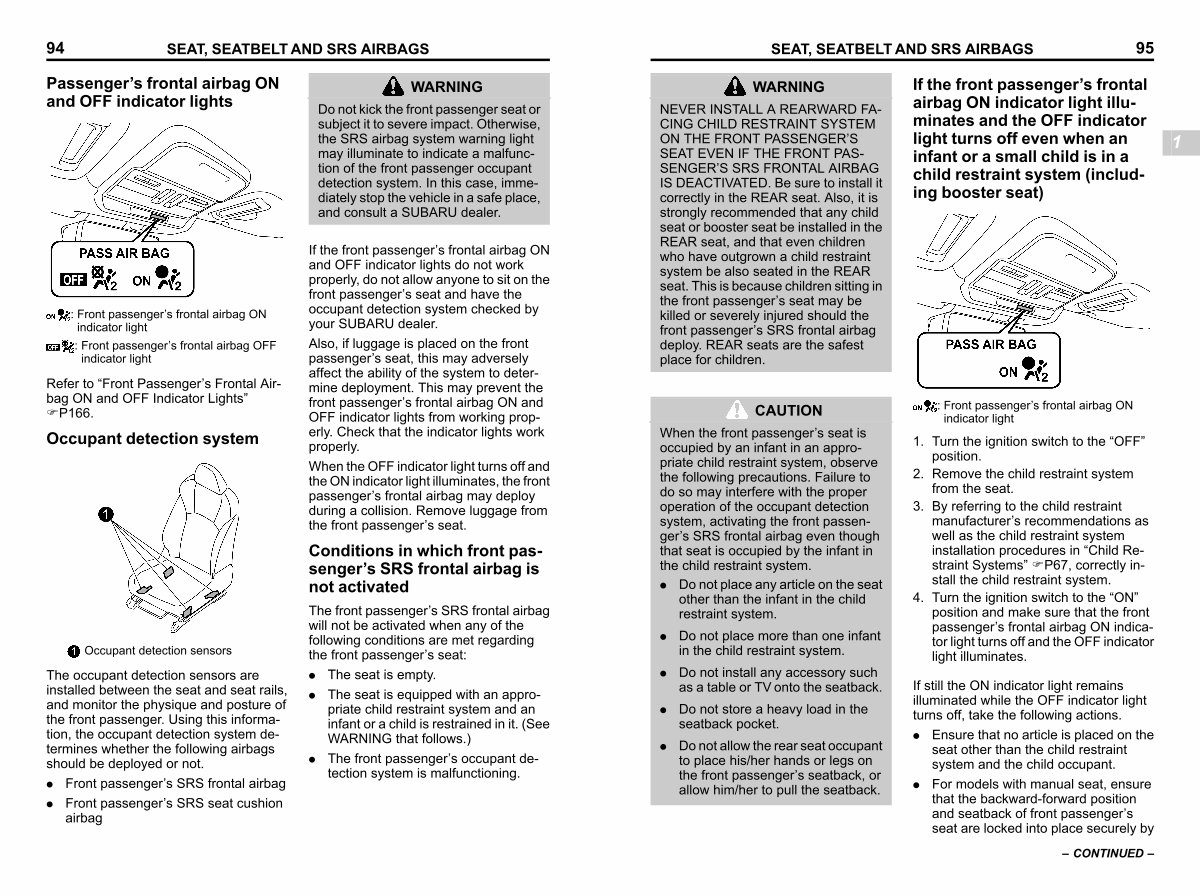

Passenger’ s frontal airbag ON and OFF indicator lights s01ah0203
WARNING
Do not kick the front passenger seat or subject it to severe impact. Otherwise, the SRS airbag system warning light may illuminate to indicate a malfunction of the front passenger occupant detection system. In this case, immediately stop the vehicle in a safe place, and consult a SUBARU dealer.
S _ 103349-W
: Front passenger’ s frontal airbag ON indicator light
: Front passenger’ s frontal airbag OFF indicator light
Refer to“ Front Passenger’ s Frontal Airbag ON and OFF Indicator Lights” FP166.
Occupant detection system s01ah0209
S _ 103230-MW
Occupant detection sensors
The occupant detection sensors are installed between the seat and seat rails, and monitor the physique and posture of the front passenger. Using this information, the occupant detection system determines whether the following airbags should be deployed or not.
. Front passenger’ s SRS frontal airbag
. Front passenger’ s SRS seat cushion airbag
If the front passenger’ s frontal airbag ON and OFF indicator lights do not work properly, do not allow anyone to sit on the front passenger’ s seat and have the occupant detection system checked by your SUBARU dealer.
Also, if luggage is placed on the front passenger’ s seat, this may adversely affect the ability of the system to determine deployment. This may prevent the front passenger’ s frontal airbag ON and OFF indicator lights from working properly. Check that the indicator lights work properly.
When the OFF indicator light turns off and the ON indicator light illuminates, the front passenger’ s frontal airbag may deploy during a collision. Remove luggage from the front passenger’ s seat.
Conditions in which front passenger’ s SRS frontal airbag is not activated s01ah0204
The front passenger’ s SRS frontal airbag will not be activated when any of the following conditions are met regarding the front passenger’ s seat:
. The seat is empty.
. The seat is equipped with an appropriate child restraint system and an infant or a child is restrained in it.( See WARNING that follows.)
. The front passenger’ s occupant detection system is malfunctioning.
