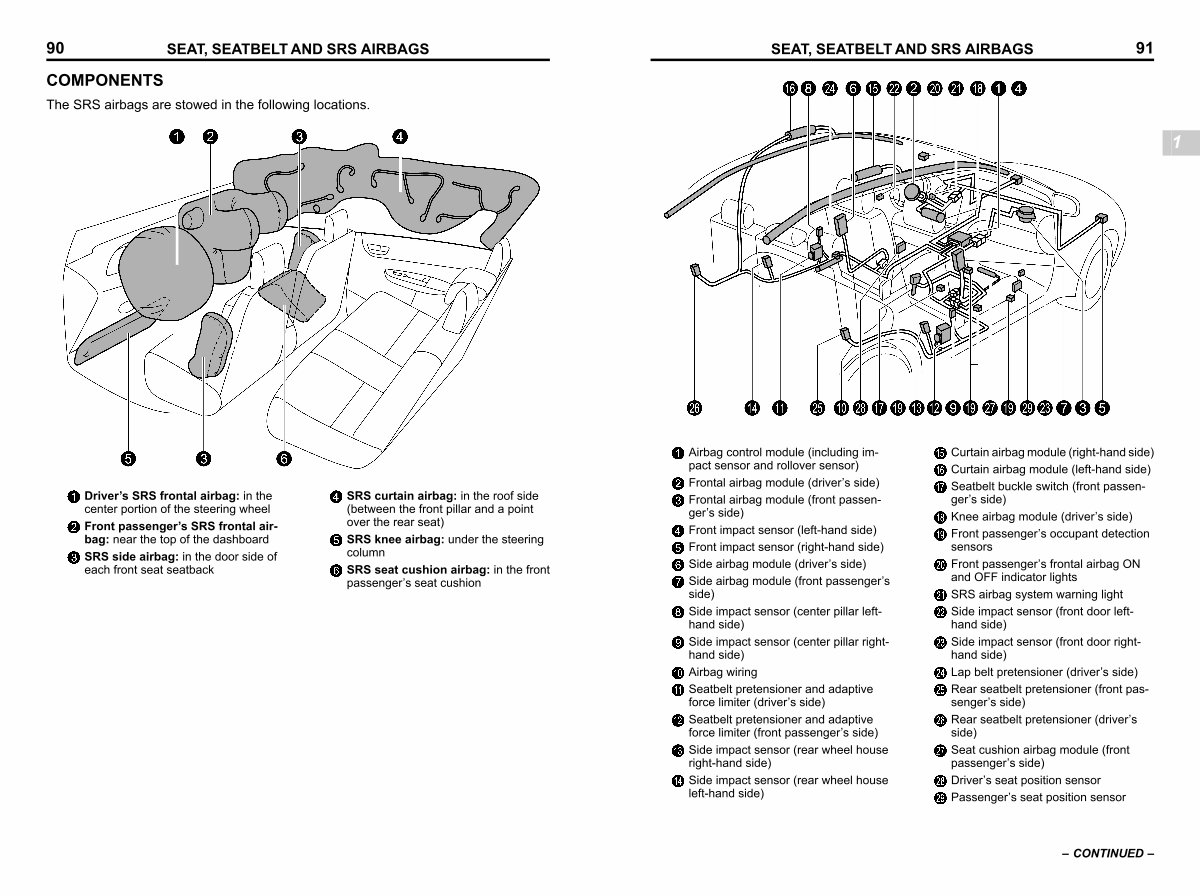

SEAT, SEATBELT AND SRS AIRBAGS 91
1
S _ 103364-W
Airbag control module( including impact sensor and rollover sensor)
Frontal airbag module( driver’ s side)
Frontal airbag module( front passenger’ s side)
Front impact sensor( left-hand side) Front impact sensor( right-hand side) Side airbag module( driver’ s side)
Side airbag module( front passenger’ s side)
Side impact sensor( center pillar lefthand side)
Side impact sensor( center pillar righthand side)
Airbag wiring
Seatbelt pretensioner and adaptive force limiter( driver’ s side)
Seatbelt pretensioner and adaptive force limiter( front passenger’ s side)
Side impact sensor( rear wheel house right-hand side)
Side impact sensor( rear wheel house left-hand side)
Curtain airbag module( right-hand side) Curtain airbag module( left-hand side)
Seatbelt buckle switch( front passenger’ s side)
Knee airbag module( driver’ s side)
Front passenger’ s occupant detection sensors
Front passenger’ s frontal airbag ON and OFF indicator lights
SRS airbag system warning light
Side impact sensor( front door lefthand side)
Side impact sensor( front door righthand side)
Lap belt pretensioner( driver’ s side)
Rear seatbelt pretensioner( front passenger’ s side)
Rear seatbelt pretensioner( driver’ s side)
Seat cushion airbag module( front passenger’ s side)
Driver’ s seat position sensor Passenger’ s seat position sensor
– CONTINUED –
