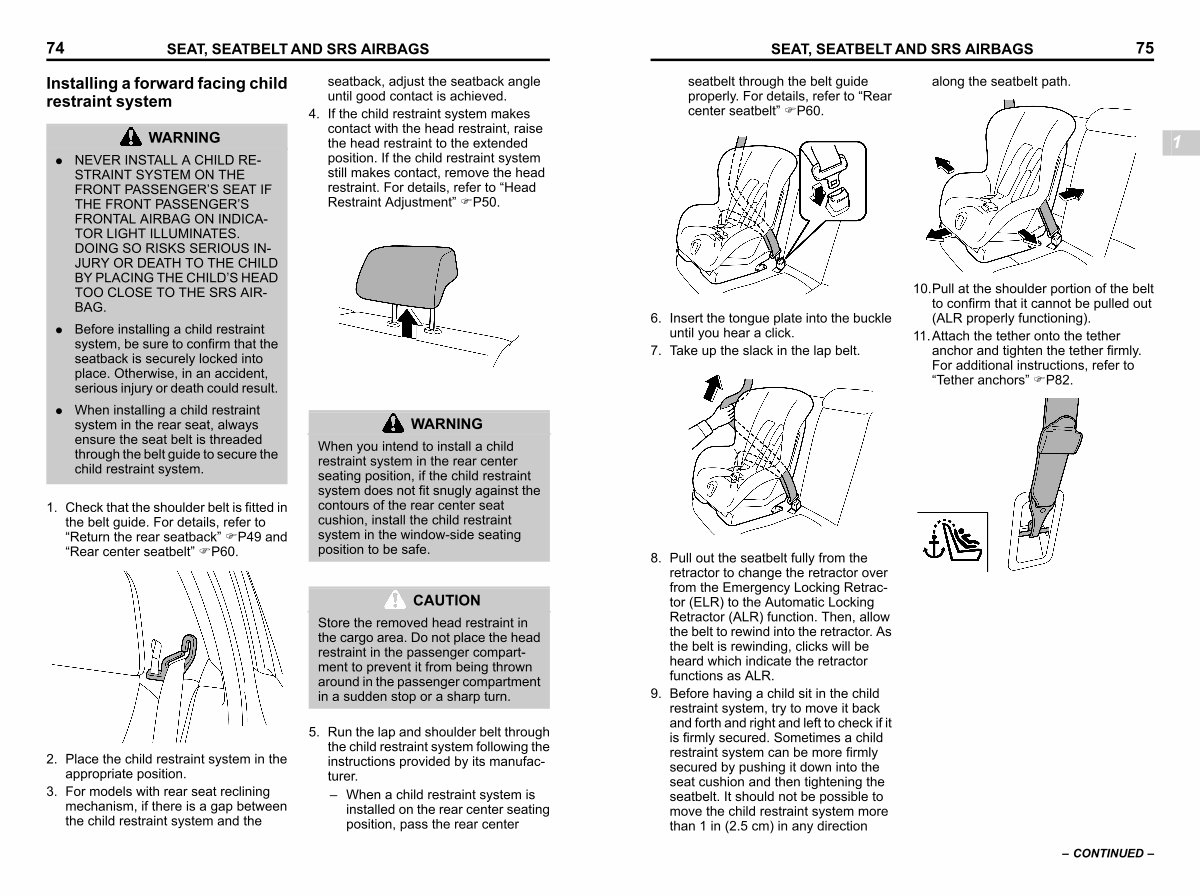

SEAT, SEATBELT AND SRS AIRBAGS 75
seatbelt through the belt guide properly. For details, refer to“ Rear center seatbelt” FP60. along the seatbelt path.
1
S _ 103099-MW
6. Insert the tongue plate into the buckle until you hear a click.
7. Take up the slack in the lap belt.
S _ 103101-MW
10. Pull at the shoulder portion of the belt to confirm that it cannot be pulled out( ALR properly functioning).
11. Attach the tether onto the tether anchor and tighten the tether firmly. For additional instructions, refer to“ Tether anchors” FP82.
S _ 103100-MW
8. Pull out the seatbelt fully from the retractor to change the retractor over from the Emergency Locking Retractor( ELR) to the Automatic Locking Retractor( ALR) function. Then, allow the belt to rewind into the retractor. As the belt is rewinding, clicks will be heard which indicate the retractor functions as ALR.
9. Before having a child sit in the child restraint system, try to move it back and forth and right and left to check if it is firmly secured. Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt. It should not be possible to move the child restraint system more than 1 in( 2.5 cm) in any direction
S _ 103102-W
– CONTINUED –
