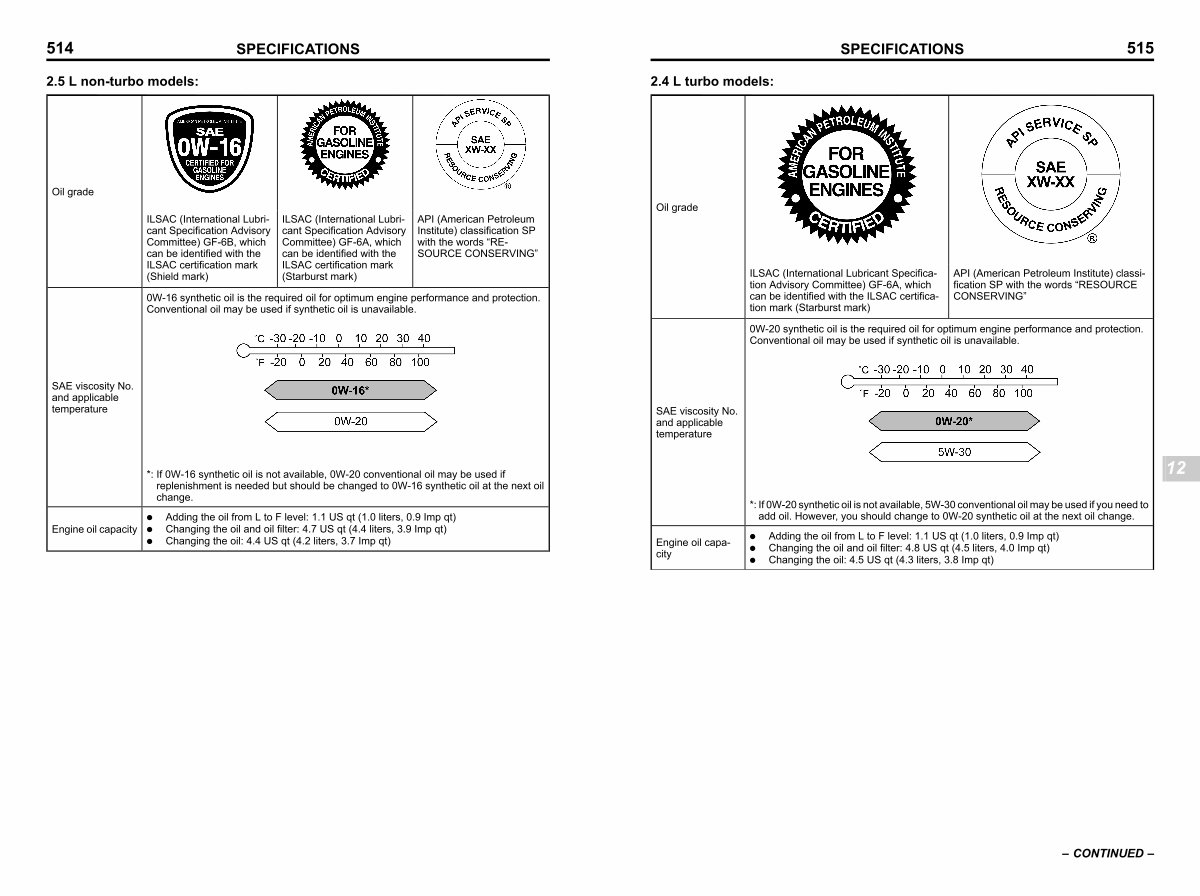

SPECIFICATIONS 515
2.4 L turbo models:
Oil grade
ZOM0982-W
ILSAC( International Lubricant Specification Advisory Committee) GF-6A, which can be identified with the ILSAC certification mark( Starburst mark)
ZOM0983-W
API( American Petroleum Institute) classification SP with the words“ RESOURCE CONSERVING”
0W-20 synthetic oil is the required oil for optimum engine performance and protection. Conventional oil may be used if synthetic oil is unavailable.
SAE viscosity No. and applicable temperature
ZOM1020-W
12
*: If 0W-20 synthetic oil is not available, 5W-30 conventional oil may be used if you need to add oil. However, you should change to 0W-20 synthetic oil at the next oil change.
Engine oil capacity
. |
Adding the oil from L to F level: 1.1 US qt( 1.0 liters, 0.9 Imp qt) |
. |
Changing the oil and oil filter: 4.8 US qt( 4.5 liters, 4.0 Imp qt) |
. |
Changing the oil: 4.5 US qt( 4.3 liters, 3.8 Imp qt) |
– CONTINUED –
