512

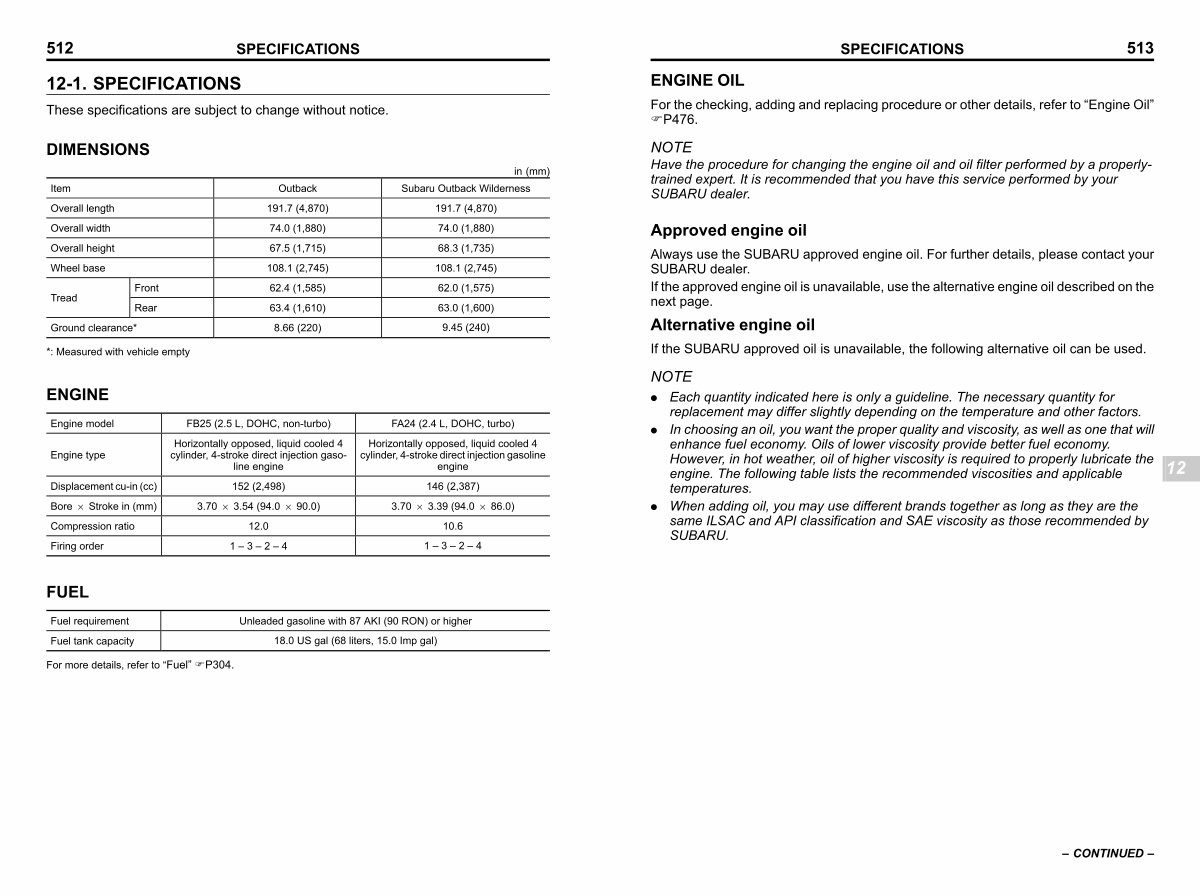

SPECIFICATIONS
12-1. SPECIFICATIONS s12aa
These specifications are subject to change without notice.
DIMENSIONS
s12aa01 |
|
|
in( mm) |
Item |
Outback |
Subaru Outback Wilderness |
Overall length 191.7( 4,870) 191.7( 4,870) Overall width 74.0( 1,880) 74.0( 1,880) Overall height 67.5( 1,715) 68.3( 1,735) Wheel base 108.1( 2,745) 108.1( 2,745)
Tread
Front 62.4( 1,585) 62.0( 1,575)
Rear 63.4( 1,610) 63.0( 1,600) Ground clearance * 8.66( 220) 9.45( 240) *: Measured with vehicle empty
ENGINE
|
s12aa02 |
|
Engine model |
FB25( 2.5 L, DOHC, non-turbo) |
FA24( 2.4 L, DOHC, turbo) |
Engine type
Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine
Horizontally opposed, liquid cooled 4 cylinder, 4-stroke direct injection gasoline engine
Displacement cu-in( cc) 152( 2,498) 146( 2,387) Bore 6 Stroke in( mm) 3.70 6 3.54( 94.0 6 90.0) 3.70 6 3.39( 94.0 6 86.0) Compression ratio 12.0 10.6 Firing order 1 – 3 – 2 – 4 1 – 3 – 2 – 4
FUEL
s12aa08 |
Fuel requirement |
Unleaded gasoline with 87 AKI( 90 RON) or higher |
Fuel tank capacity |
18.0 US gal( 68 liters, 15.0 Imp gal) |
For more details, refer to“ Fuel” FP304.
