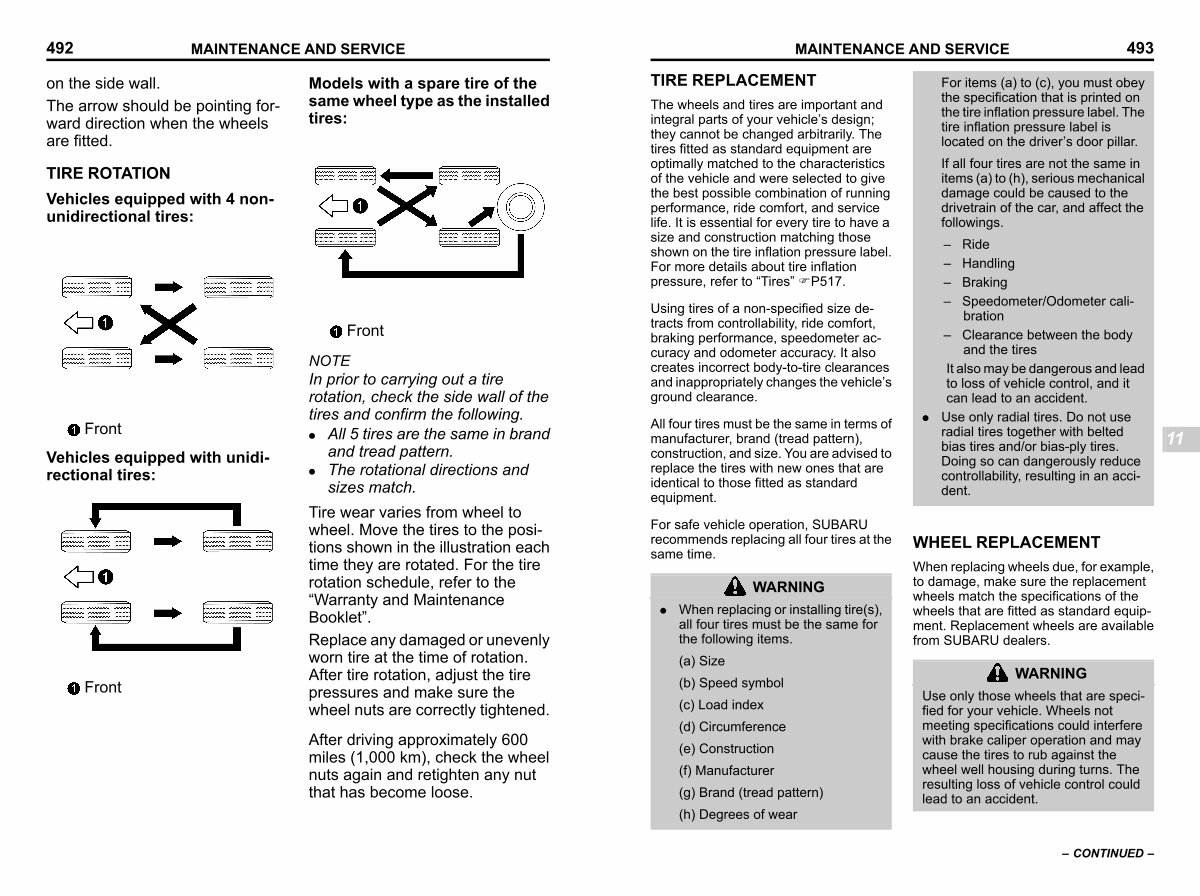

MAINTENANCE AND SERVICE 493 TIRE REPLACEMENT s11av08
The wheels and tires are important and integral parts of your vehicle’ s design; they cannot be changed arbitrarily. The tires fitted as standard equipment are optimally matched to the characteristics of the vehicle and were selected to give the best possible combination of running performance, ride comfort, and service life. It is essential for every tire to have a size and construction matching those shown on the tire inflation pressure label. For more details about tire inflation pressure, refer to“ Tires” FP517.
Using tires of a non-specified size detracts from controllability, ride comfort, braking performance, speedometer accuracy and odometer accuracy. It also creates incorrect body-to-tire clearances and inappropriately changes the vehicle’ s ground clearance.
All four tires must be the same in terms of manufacturer, brand( tread pattern), construction, and size. You are advised to replace the tires with new ones that are identical to those fitted as standard equipment.
For safe vehicle operation, SUBARU recommends replacing all four tires at the same time.
WARNING
. When replacing or installing tire( s), all four tires must be the same for the following items.
( a) Size( b) Speed symbol( c) Load index( d) Circumference( e) Construction( f) Manufacturer( g) Brand( tread pattern)( h) Degrees of wear
For items( a) to( c), you must obey the specification that is printed on the tire inflation pressure label. The tire inflation pressure label is located on the driver’ s door pillar.
If all four tires are not the same in items( a) to( h), serious mechanical damage could be caused to the drivetrain of the car, and affect the followings.
– Ride – Handling – Braking
– Speedometer / Odometer calibration
– Clearance between the body and the tires
It also may be dangerous and lead to loss of vehicle control, and it can lead to an accident.
. Use only radial tires. Do not use radial tires together with belted bias tires and / or bias-ply tires. Doing so can dangerously reduce controllability, resulting in an accident.
WHEEL REPLACEMENT s11av09
When replacing wheels due, for example, to damage, make sure the replacement wheels match the specifications of the wheels that are fitted as standard equipment. Replacement wheels are available from SUBARU dealers.
WARNING
Use only those wheels that are specified for your vehicle. Wheels not meeting specifications could interfere with brake caliper operation and may cause the tires to rub against the wheel well housing during turns. The resulting loss of vehicle control could lead to an accident.
11
– CONTINUED –
