398
STARTING AND OPERATING

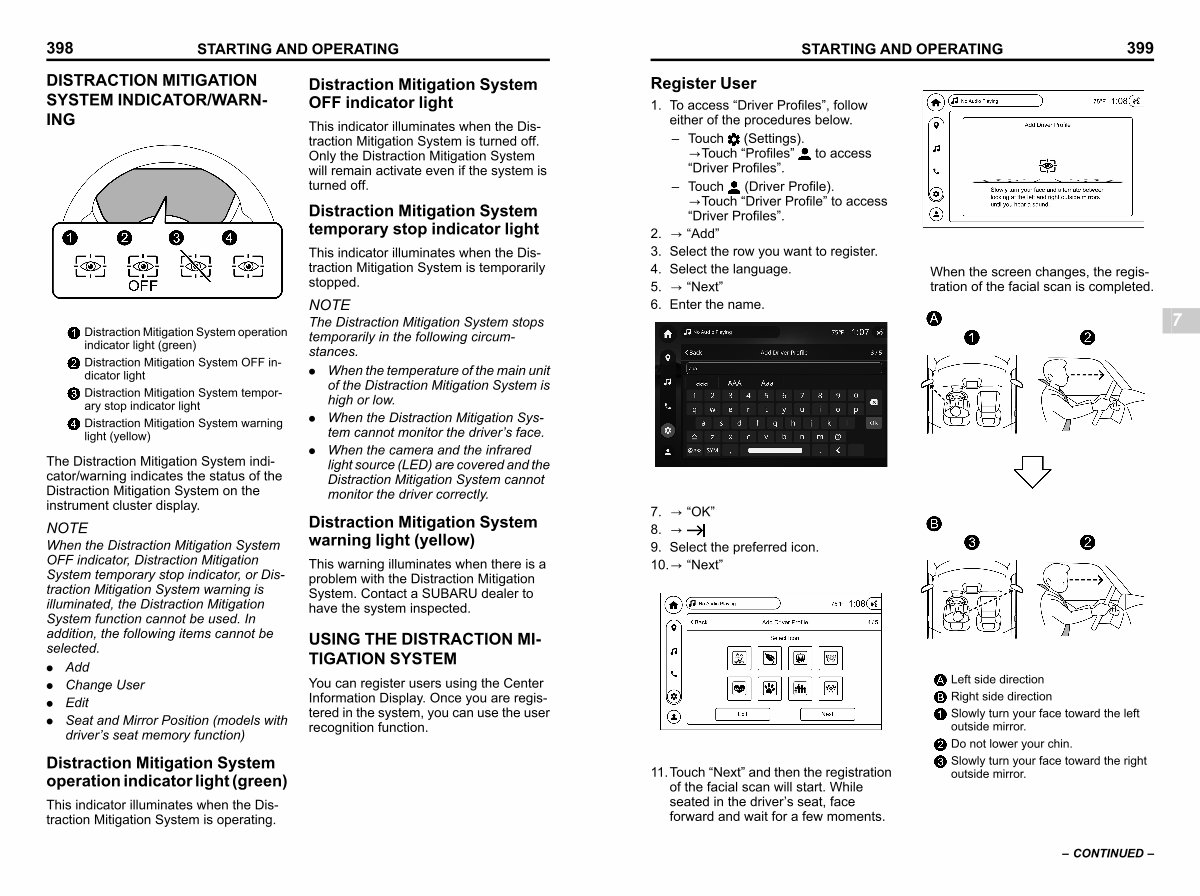

DISTRACTION MITIGATION SYSTEM INDICATOR / WARN- ING s07bp03
S _ 703361-W
Distraction Mitigation System operation indicator light( green)
Distraction Mitigation System OFF indicator light
Distraction Mitigation System temporary stop indicator light
Distraction Mitigation System warning light( yellow)
The Distraction Mitigation System indicator / warning indicates the status of the Distraction Mitigation System on the instrument cluster display.
NOTE
When the Distraction Mitigation System OFF indicator, Distraction Mitigation System temporary stop indicator, or Distraction Mitigation System warning is illuminated, the Distraction Mitigation System function cannot be used. In addition, the following items cannot be selected.
. Add. Change User. Edit
. Seat and Mirror Position( models with driver’ s seat memory function)
Distraction Mitigation System operation indicator light( green) s07bp0301
This indicator illuminates when the Distraction Mitigation System is operating.
Distraction Mitigation System OFF indicator light s07bp0302
This indicator illuminates when the Distraction Mitigation System is turned off. Only the Distraction Mitigation System will remain activate even if the system is turned off.
Distraction Mitigation System temporary stop indicator light s07bp0303
This indicator illuminates when the Distraction Mitigation System is temporarily stopped.
NOTE
The Distraction Mitigation System stops temporarily in the following circumstances.
. When the temperature of the main unit of the Distraction Mitigation System is high or low.
. When the Distraction Mitigation System cannot monitor the driver’ s face.
. When the camera and the infrared light source( LED) are covered and the Distraction Mitigation System cannot monitor the driver correctly.
Distraction Mitigation System warning light( yellow) s07bp0304
This warning illuminates when there is a problem with the Distraction Mitigation System. Contact a SUBARU dealer to have the system inspected.
USING THE DISTRACTION MI- TIGATION SYSTEM s07bp04
You can register users using the Center Information Display. Once you are registered in the system, you can use the user recognition function.
