STARTING AND OPERATING 383

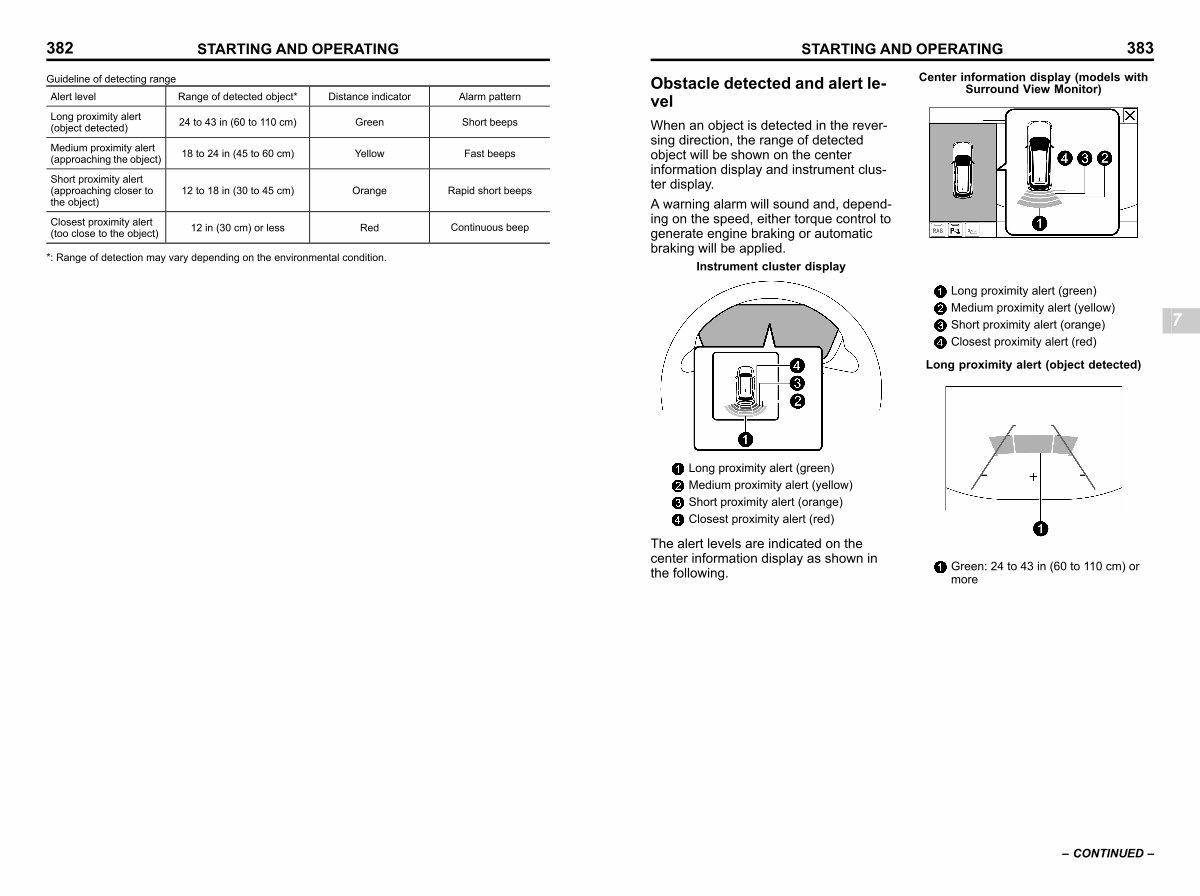

Obstacle detected and alert level s07bn0301
When an object is detected in the reversing direction, the range of detected object will be shown on the center information display and instrument cluster display.
A warning alarm will sound and, depending on the speed, either torque control to generate engine braking or automatic braking will be applied.
Instrument cluster display
Center information display( models with Surround View Monitor)
S _ 703588-W
Long proximity alert( green) Medium proximity alert( yellow) Short proximity alert( orange) Closest proximity alert( red)
Long proximity alert( object detected)
7
S _ 703489-W
Long proximity alert( green) Medium proximity alert( yellow) Short proximity alert( orange) Closest proximity alert( red)
The alert levels are indicated on the center information display as shown in the following.
S _ 703589-W
Green: 24 to 43 in( 60 to 110 cm) or more
– CONTINUED –
