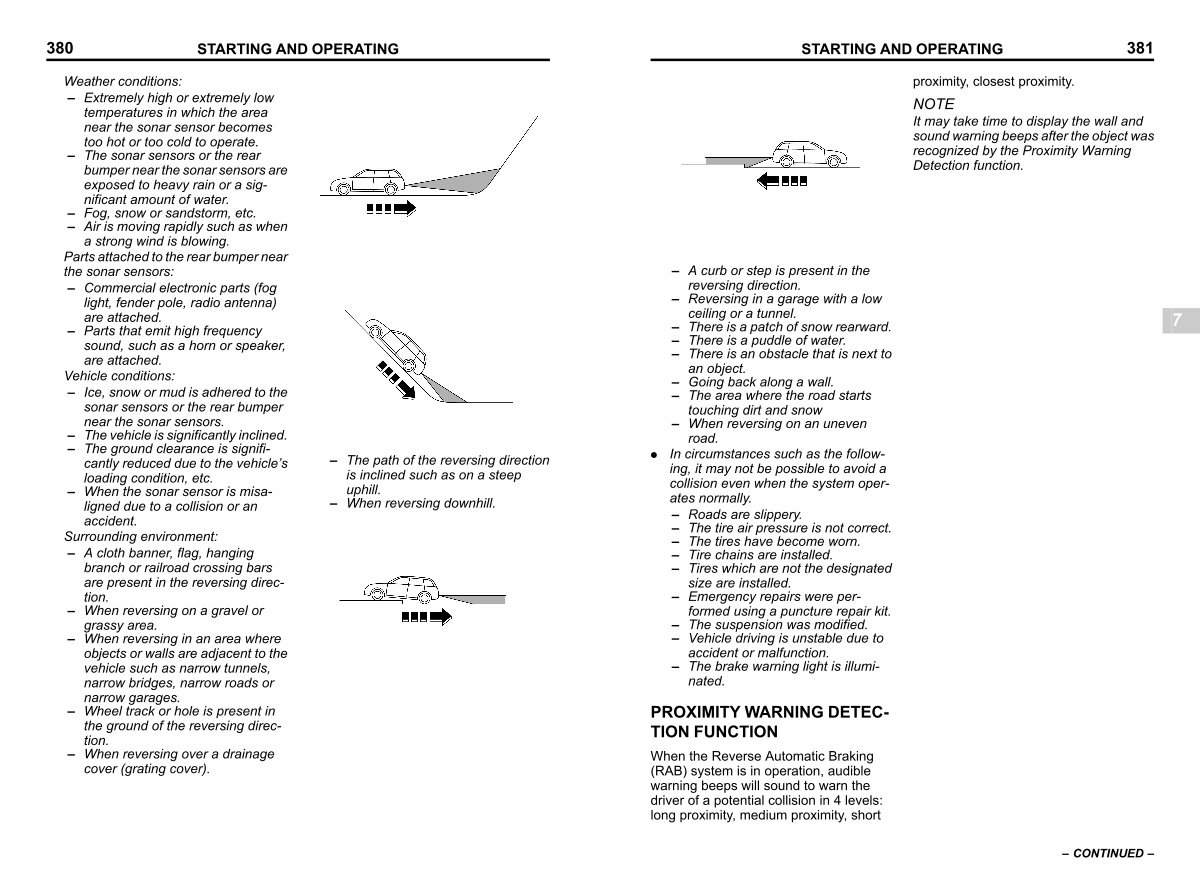

STARTING AND OPERATING 381
proximity, closest proximity.
NOTE
It may take time to display the wall and sound warning beeps after the object was recognized by the Proximity Warning Detection function.
S _ 703189-MW
– A curb or step is present in the
reversing direction. – Reversing in a garage with a low
ceiling or a tunnel. – There is a patch of snow rearward. – There is a puddle of water. – There is an obstacle that is next to
an object. – Going back along a wall. – The area where the road starts
touching dirt and snow – When reversing on an uneven
road.
. In circumstances such as the following, it may not be possible to avoid a collision even when the system operates normally.
– Roads are slippery. – The tire air pressure is not correct. – The tires have become worn. – Tire chains are installed. – Tires which are not the designated
size are installed. – Emergency repairs were performed using a puncture repair kit. – The suspension was modified. – Vehicle driving is unstable due to
accident or malfunction. – The brake warning light is illuminated.
7
PROXIMITY WARNING DETEC- TION FUNCTION s07bn03
When the Reverse Automatic Braking( RAB) system is in operation, audible warning beeps will sound to warn the driver of a potential collision in 4 levels: long proximity, medium proximity, short
– CONTINUED –
