two coils to become misaligned while the vehicle is in motion, the moving coil of the wireless charger automatically repositions itself and resumes charging.
However, if the mobile device moves out of the charging area, charging will automatically stop.
INTERIOR EQUIPMENT 285

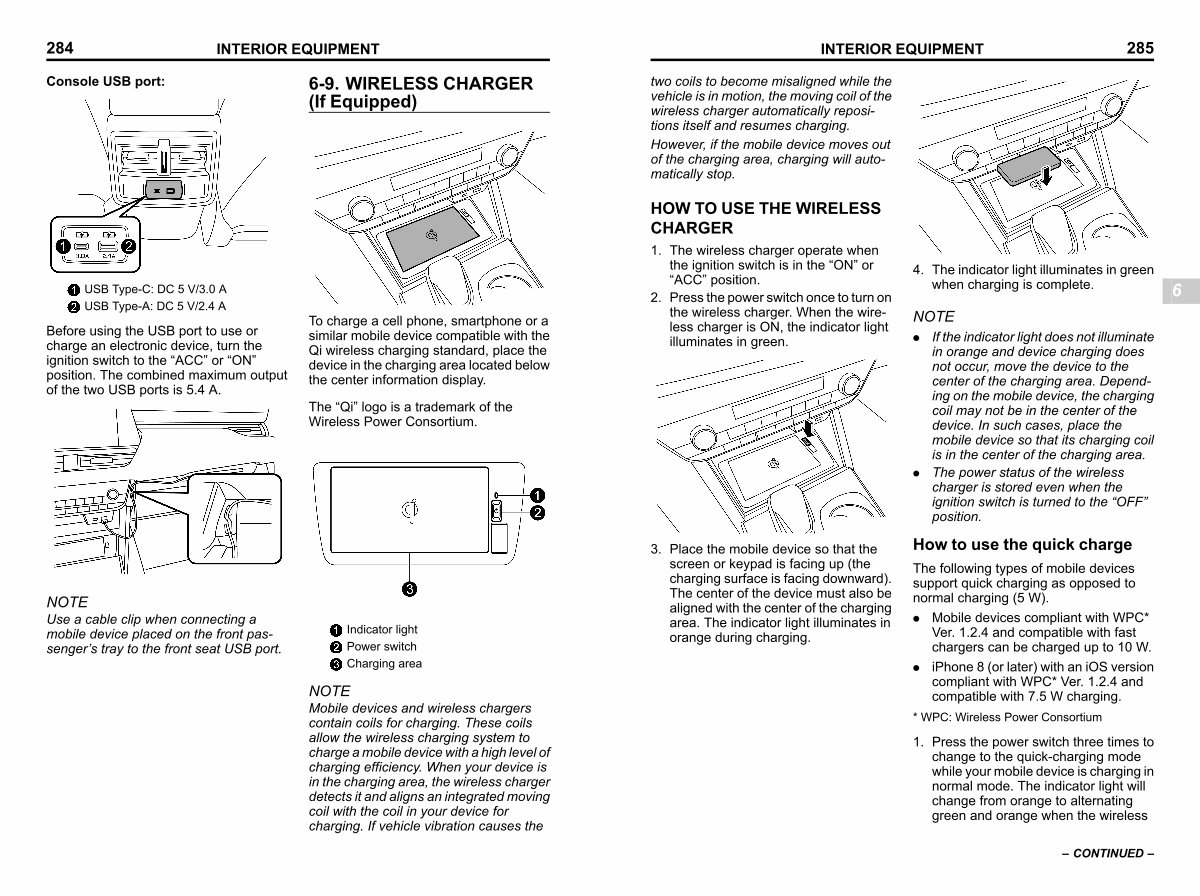

HOW TO USE THE WIRELESS CHARGER s06bh01
1. The wireless charger operate when the ignition switch is in the“ ON” or“ ACC” position.
2. Press the power switch once to turn on the wireless charger. When the wireless charger is ON, the indicator light illuminates in green.
S _ 602902-W
3. Place the mobile device so that the screen or keypad is facing up( the charging surface is facing downward). The center of the device must also be aligned with the center of the charging area. The indicator light illuminates in orange during charging.
S _ 602903-W
4. The indicator light illuminates in green when charging is complete.
NOTE
. If the indicator light does not illuminate in orange and device charging does not occur, move the device to the center of the charging area. Depending on the mobile device, the charging coil may not be in the center of the device. In such cases, place the mobile device so that its charging coil is in the center of the charging area.
. The power status of the wireless charger is stored even when the ignition switch is turned to the“ OFF” position.
How to use the quick charge s06bh0101
The following types of mobile devices support quick charging as opposed to normal charging( 5 W).
. Mobile devices compliant with WPC * Ver. 1.2.4 and compatible with fast chargers can be charged up to 10 W.
. iPhone 8( or later) with an iOS version compliant with WPC * Ver. 1.2.4 and compatible with 7.5 W charging.
* WPC: Wireless Power Consortium
1. Press the power switch three times to change to the quick-charging mode while your mobile device is charging in normal mode. The indicator light will change from orange to alternating green and orange when the wireless
6
– CONTINUED –
