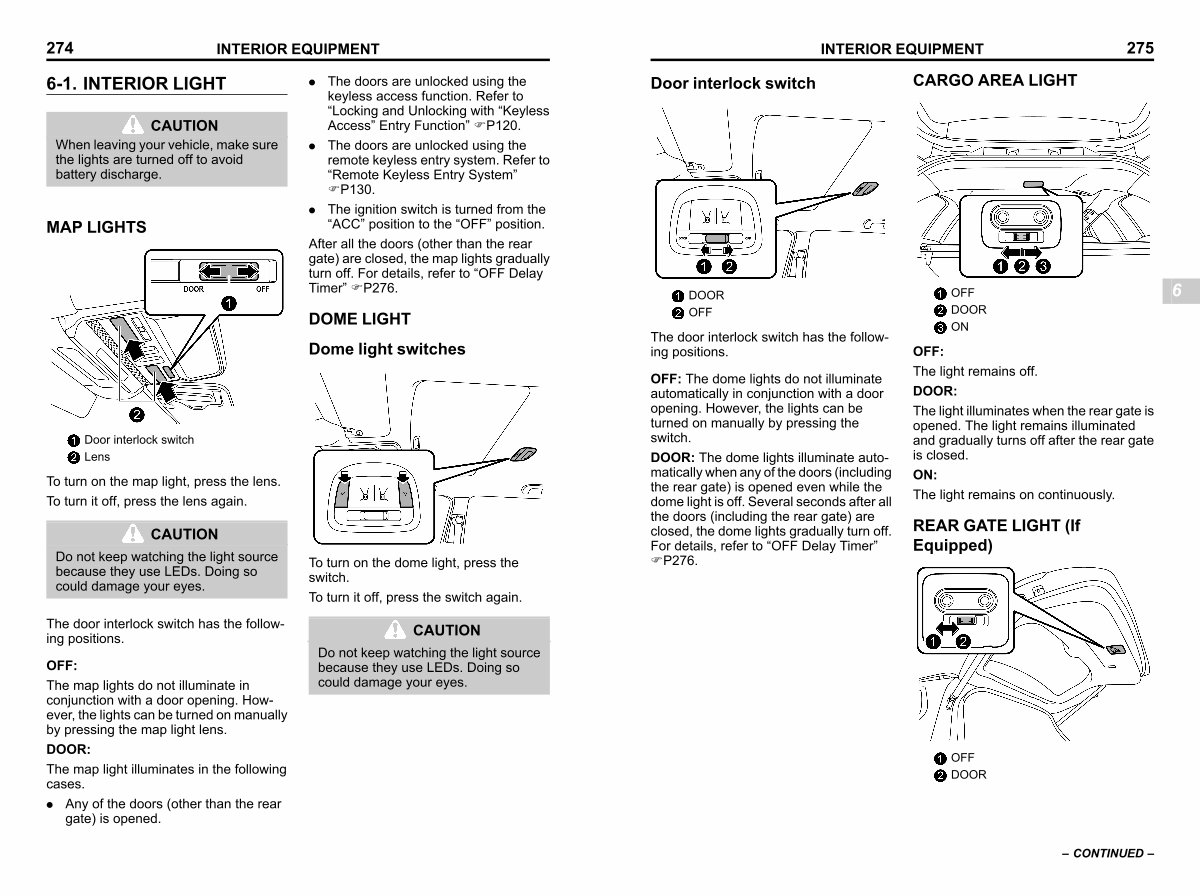

INTERIOR EQUIPMENT 275
Door interlock switch |
s06aa0107 |
|
|
CARGO AREA LIGHT |
s06aa02 |
DOOR OFF
S _ 602890-W
The door interlock switch has the following positions.
OFF: The dome lights do not illuminate automatically in conjunction with a door opening. However, the lights can be turned on manually by pressing the switch.
DOOR: The dome lights illuminate automatically when any of the doors( including the rear gate) is opened even while the dome light is off. Several seconds after all the doors( including the rear gate) are closed, the dome lights gradually turn off. For details, refer to“ OFF Delay Timer” FP276.
OFF DOOR ON
S _ 602761-W
OFF: The light remains off. DOOR:
The light illuminates when the rear gate is opened. The light remains illuminated and gradually turns off after the rear gate is closed.
ON: The light remains on continuously.
REAR GATE LIGHT( If Equipped)
s06aa04
6
OFF DOOR
S _ 602922-W
– CONTINUED –
