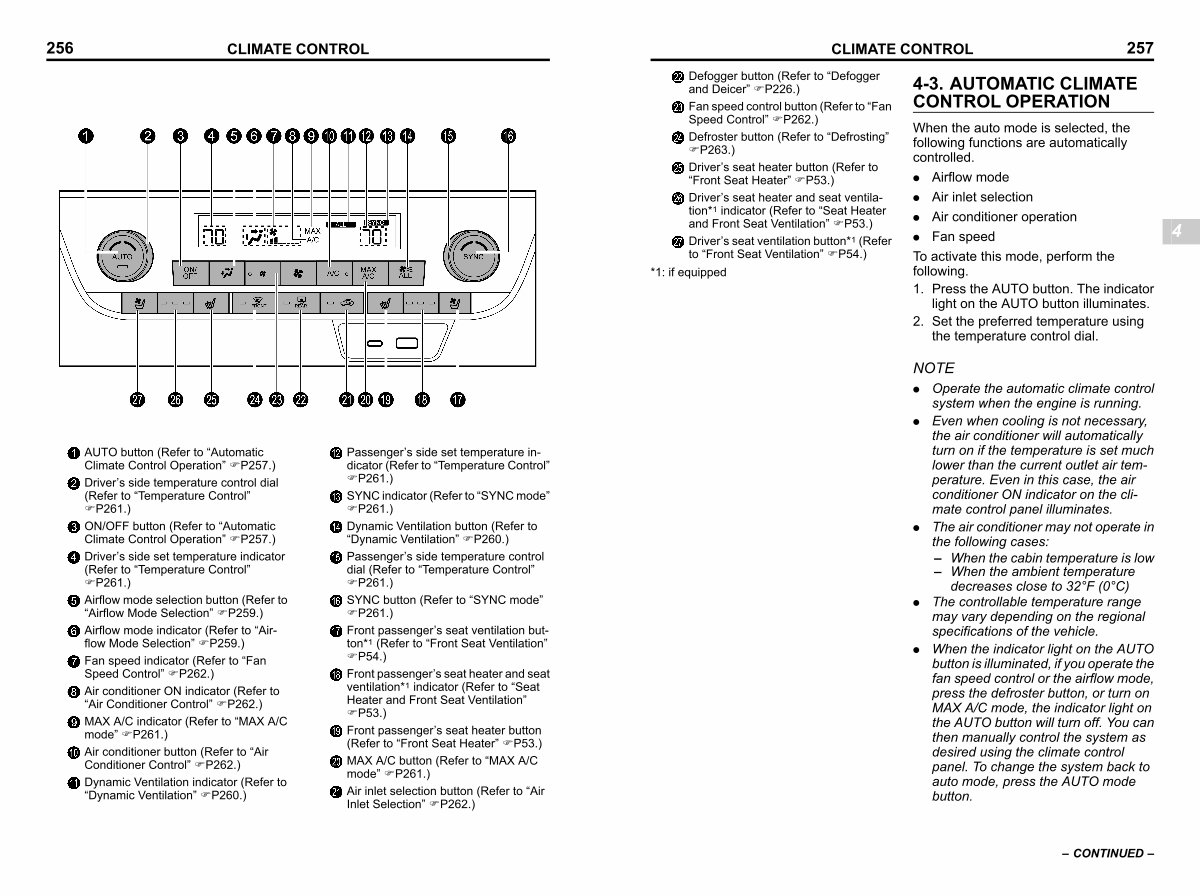

CLIMATE CONTROL 257
Defogger button( Refer to“ Defogger and Deicer” FP226.)
Fan speed control button( Refer to“ Fan Speed Control” FP262.)
Defroster button( Refer to“ Defrosting” FP263.)
Driver’ s seat heater button( Refer to“ Front Seat Heater” FP53.)
Driver’ s seat heater and seat ventilation * 1 indicator( Refer to“ Seat Heater and Front Seat Ventilation” FP53.)
Driver’ s seat ventilation button * 1( Refer to“ Front Seat Ventilation” FP54.)
* 1: if equipped
4-3. AUTOMATIC CLIMATE CONTROL OPERATION s04ai
When the auto mode is selected, the following functions are automatically controlled.
. Airflow mode. Air inlet selection. Air conditioner operation. Fan speed
To activate this mode, perform the following.
1. Press the AUTO button. The indicator light on the AUTO button illuminates.
2. Set the preferred temperature using the temperature control dial.
NOTE
. Operate the automatic climate control system when the engine is running.
. Even when cooling is not necessary, the air conditioner will automatically turn on if the temperature is set much lower than the current outlet air temperature. Even in this case, the air conditioner ON indicator on the climate control panel illuminates.
. The air conditioner may not operate in the following cases:
– When the cabin temperature is low – When the ambient temperature
decreases close to 32 ° F( 0 ° C)
. The controllable temperature range may vary depending on the regional specifications of the vehicle.
. When the indicator light on the AUTO button is illuminated, if you operate the fan speed control or the airflow mode, press the defroster button, or turn on MAX A / C mode, the indicator light on the AUTO button will turn off. You can then manually control the system as desired using the climate control panel. To change the system back to auto mode, press the AUTO mode button.
4
– CONTINUED –
