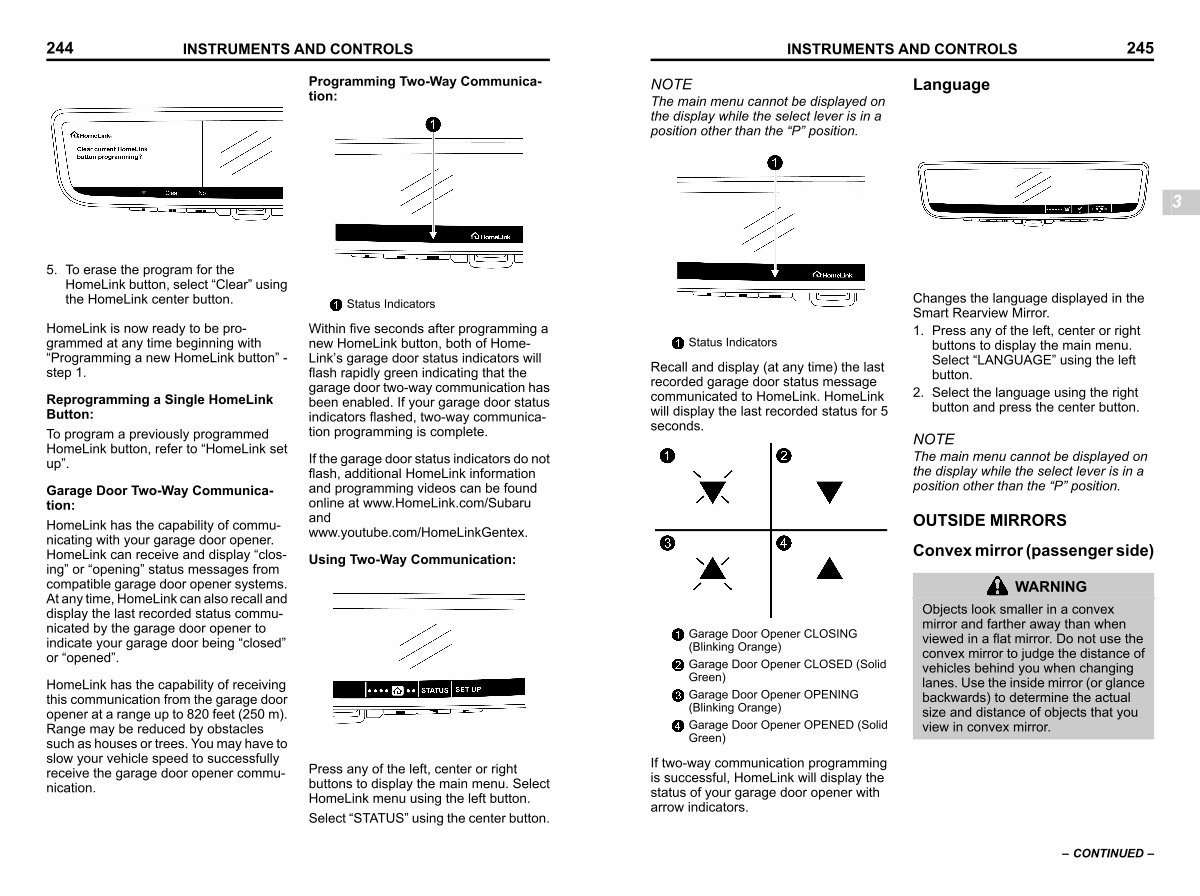

INSTRUMENTS AND CONTROLS 245
NOTE
The main menu cannot be displayed on the display while the select lever is in a position other than the“ P” position.
Language s03ap1109
3
Status Indicators
S _ 308195-W
Recall and display( at any time) the last recorded garage door status message communicated to HomeLink. HomeLink will display the last recorded status for 5 seconds.
S _ 307935-W
Garage Door Opener CLOSING( Blinking Orange)
Garage Door Opener CLOSED( Solid Green)
Garage Door Opener OPENING( Blinking Orange)
Garage Door Opener OPENED( Solid Green)
If two-way communication programming is successful, HomeLink will display the status of your garage door opener with arrow indicators.
S _ 308198-W
Changes the language displayed in the Smart Rearview Mirror.
1. Press any of the left, center or right buttons to display the main menu. Select“ LANGUAGE” using the left button.
2. Select the language using the right button and press the center button.
NOTE
The main menu cannot be displayed on the display while the select lever is in a position other than the“ P” position.
OUTSIDE MIRRORS s03ap03
Convex mirror( passenger side) s03ap0301
WARNING
Objects look smaller in a convex mirror and farther away than when viewed in a flat mirror. Do not use the convex mirror to judge the distance of vehicles behind you when changing lanes. Use the inside mirror( or glance backwards) to determine the actual size and distance of objects that you view in convex mirror.
– CONTINUED –
