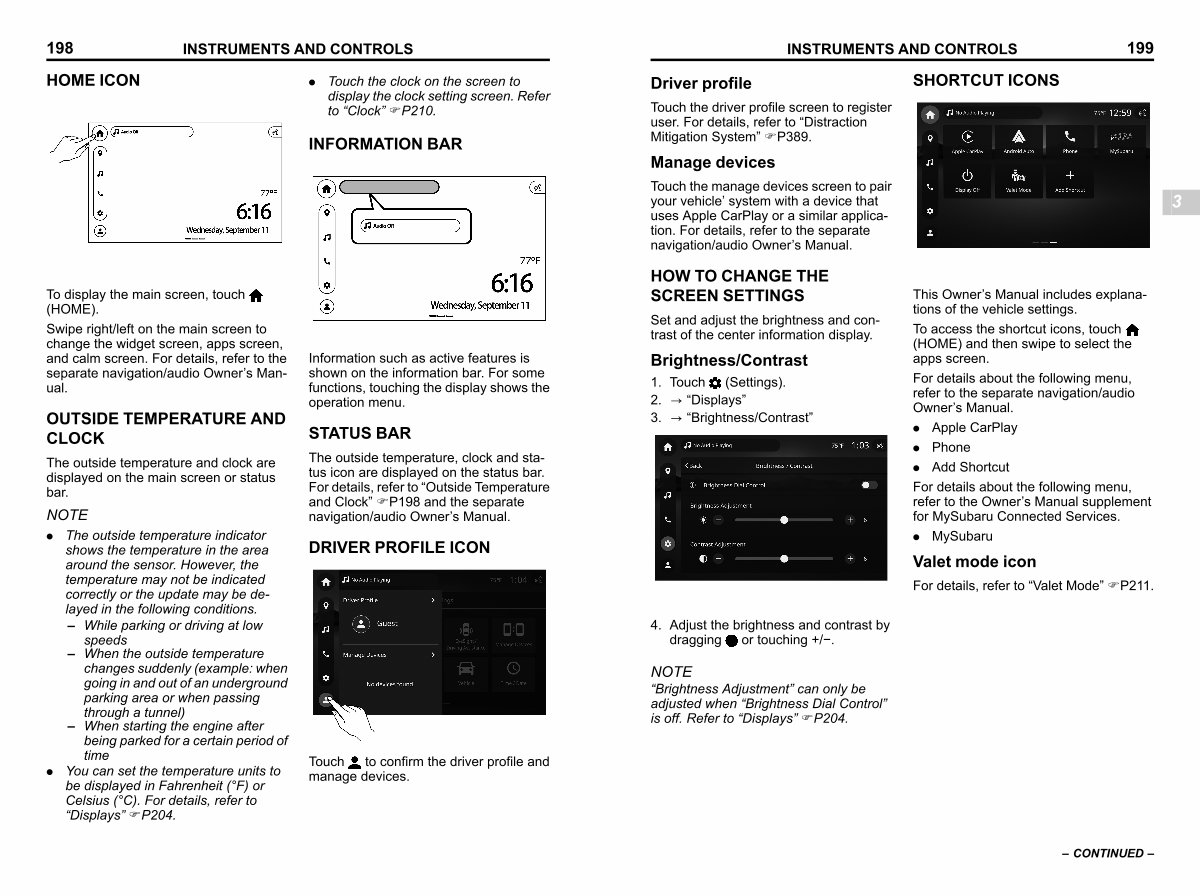

198 INSTRUMENTS AND CONTROLS
HOME ICON s03bx01
. Touch the clock on the screen to display the clock setting screen. Refer to“ Clock” FP210.
INFORMATION BAR s03bx03
S _ 308357-W
To display the main screen, touch( HOME).
Swipe right / left on the main screen to change the widget screen, apps screen, and calm screen. For details, refer to the separate navigation / audio Owner’ s Manual.
OUTSIDE TEMPERATURE AND CLOCK s03bx02
The outside temperature and clock are displayed on the main screen or status bar.
NOTE
. The outside temperature indicator shows the temperature in the area around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to“ Displays” FP204.
S _ 308358-W
Information such as active features is shown on the information bar. For some functions, touching the display shows the operation menu.
STATUS BAR s03bw02
The outside temperature, clock and status icon are displayed on the status bar. For details, refer to“ Outside Temperature and Clock” FP198 and the separate navigation / audio Owner’ s Manual.
DRIVER PROFILE ICON s03bx07
S _ 308375-W
Touch to confirm the driver profile and manage devices.
