INSTRUMENTS AND CONTROLS

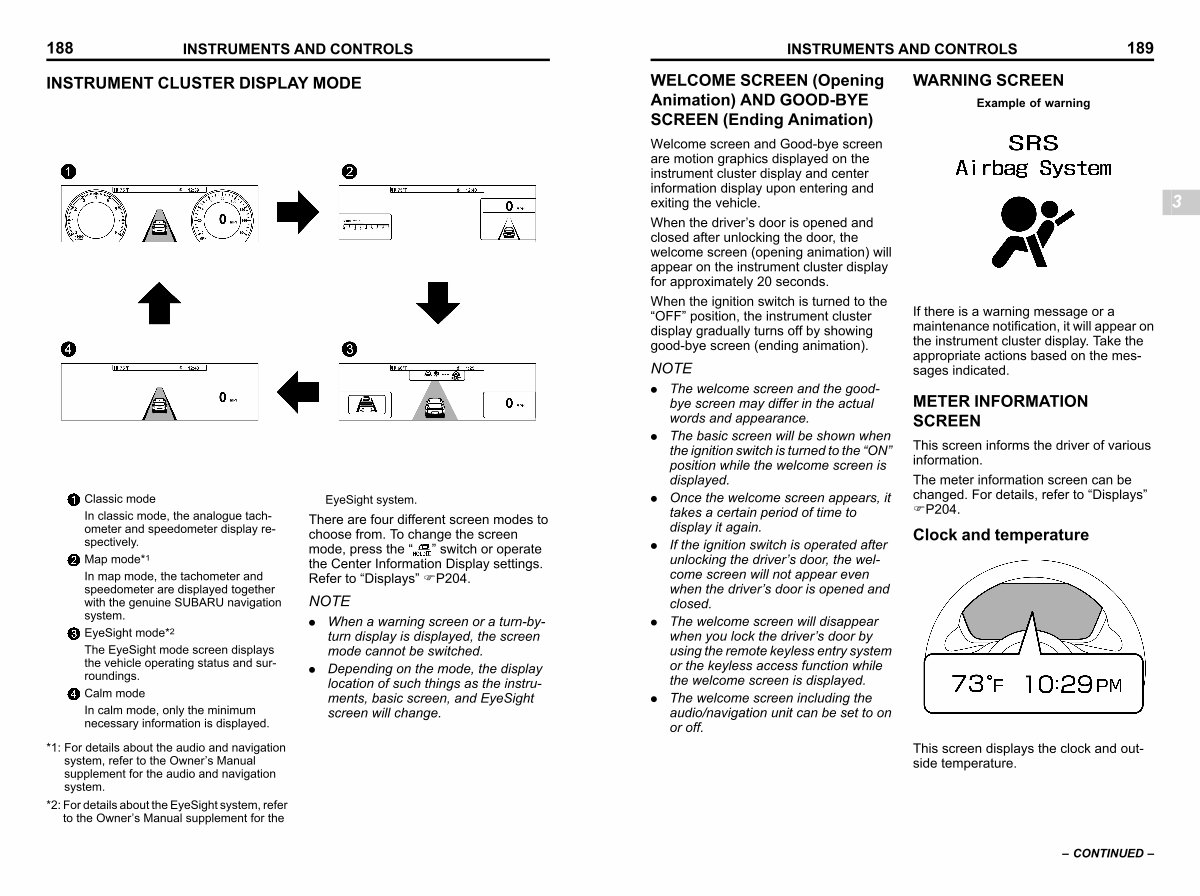

INSTRUMENT CLUSTER DISPLAY MODE s03bn16
S _ 308349-W
Classic mode
In classic mode, the analogue tachometer and speedometer display respectively.
Map mode * 1
In map mode, the tachometer and speedometer are displayed together with the genuine SUBARU navigation system.
EyeSight mode * 2
The EyeSight mode screen displays the vehicle operating status and surroundings.
Calm mode
In calm mode, only the minimum necessary information is displayed.
EyeSight system.
There are four different screen modes to choose from. To change the screen mode, press the“” switch or operate the Center Information Display settings. Refer to“ Displays” FP204.
NOTE
. When a warning screen or a turn-byturn display is displayed, the screen mode cannot be switched.
. Depending on the mode, the display location of such things as the instruments, basic screen, and EyeSight screen will change.
* 1: For details about the audio and navigation system, refer to the Owner’ s Manual supplement for the audio and navigation system.
* 2: For details about the EyeSight system, refer to the Owner’ s Manual supplement for the
