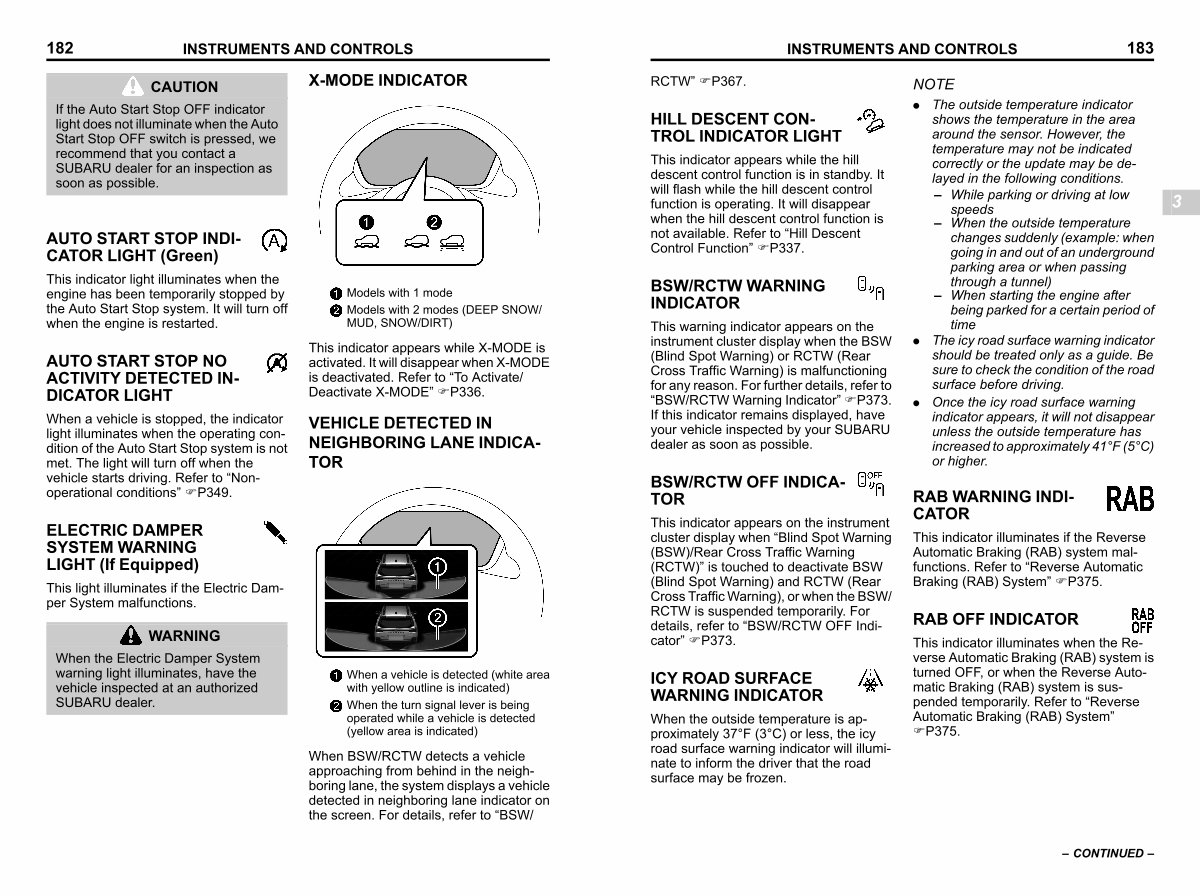

182
INSTRUMENTS AND CONTROLS
CAUTION
If the Auto Start Stop OFF indicator light does not illuminate when the Auto Start Stop OFF switch is pressed, we recommend that you contact a SUBARU dealer for an inspection as soon as possible.
X-MODE INDICATOR
s03ae68
AUTO START STOP INDI- CATOR LIGHT( Green) s03ae66
This indicator light illuminates when the engine has been temporarily stopped by the Auto Start Stop system. It will turn off when the engine is restarted.
AUTO START STOP NO ACTIVITY DETECTED IN- DICATOR LIGHT s03aea3
When a vehicle is stopped, the indicator light illuminates when the operating condition of the Auto Start Stop system is not met. The light will turn off when the vehicle starts driving. Refer to“ Nonoperational conditions” FP349.
S _ 308346-W
Models with 1 mode
Models with 2 modes( DEEP SNOW / MUD, SNOW / DIRT)
This indicator appears while X-MODE is activated. It will disappear when X-MODE is deactivated. Refer to“ To Activate / Deactivate X-MODE” FP336.
VEHICLE DETECTED IN NEIGHBORING LANE INDICA- TOR s03aec2
ELECTRIC DAMPER SYSTEM WARNING LIGHT( If Equipped) s03aeb8
This light illuminates if the Electric Damper System malfunctions.
WARNING
When the Electric Damper System warning light illuminates, have the vehicle inspected at an authorized SUBARU dealer.
S _ 308481-W
When a vehicle is detected( white area with yellow outline is indicated)
When the turn signal lever is being operated while a vehicle is detected( yellow area is indicated)
When BSW / RCTW detects a vehicle approaching from behind in the neighboring lane, the system displays a vehicle detected in neighboring lane indicator on the screen. For details, refer to“ BSW /
