140
KEYS AND DOORS

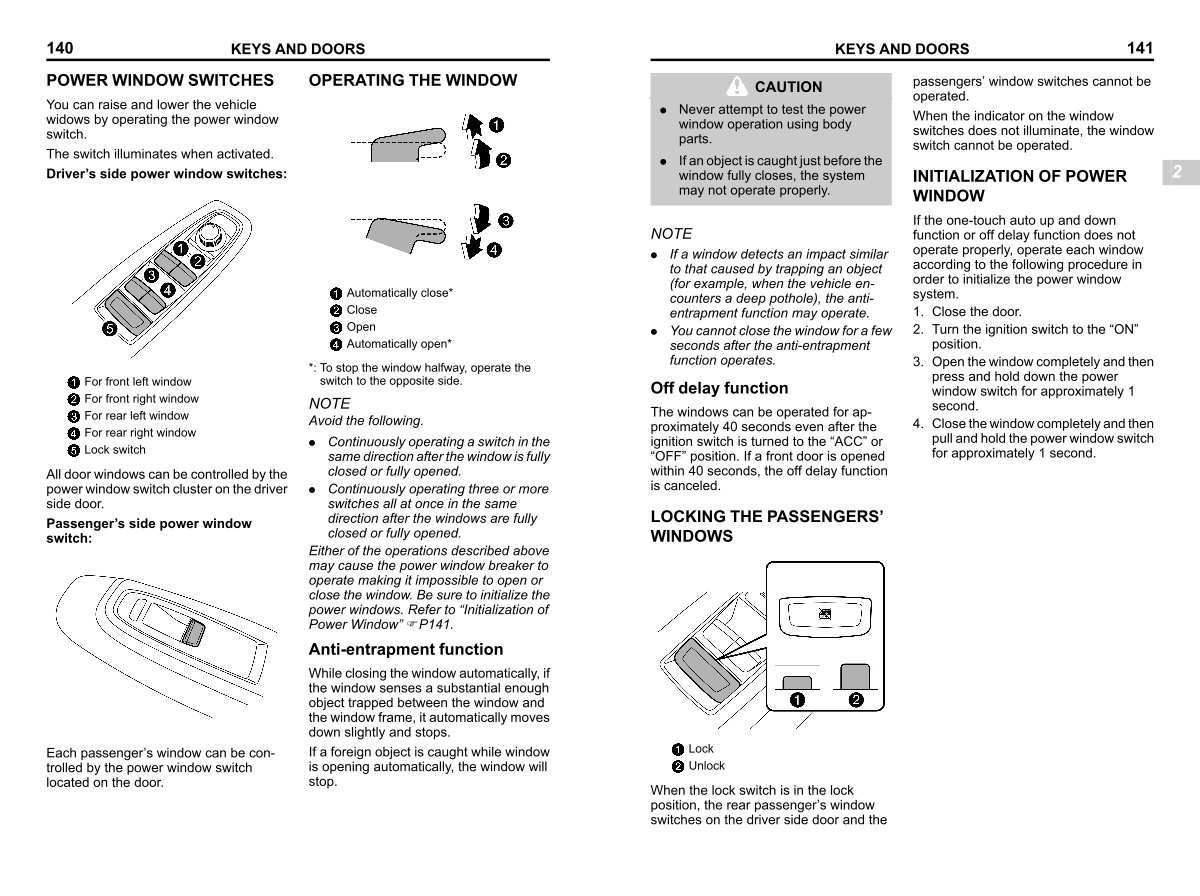

POWER WINDOW SWITCHES s02ah09
You can raise and lower the vehicle widows by operating the power window switch.
The switch illuminates when activated. Driver’ s side power window switches:
OPERATING THE WINDOW s02ah10
For front left window For front right window For rear left window For rear right window Lock switch
S _ 204484-MW
All door windows can be controlled by the power window switch cluster on the driver side door.
Passenger’ s side power window switch:
S _ 204393-W
Each passenger’ s window can be controlled by the power window switch located on the door.
Automatically close * Close Open Automatically open *
S _ 204485-MW
*: To stop the window halfway, operate the switch to the opposite side.
NOTE Avoid the following.
. Continuously operating a switch in the same direction after the window is fully closed or fully opened.
. Continuously operating three or more switches all at once in the same direction after the windows are fully closed or fully opened.
Either of the operations described above may cause the power window breaker to operate making it impossible to open or close the window. Be sure to initialize the power windows. Refer to“ Initialization of Power Window” FP141.
Anti-entrapment function s02ah1001
While closing the window automatically, if the window senses a substantial enough object trapped between the window and the window frame, it automatically moves down slightly and stops.
If a foreign object is caught while window is opening automatically, the window will stop.
