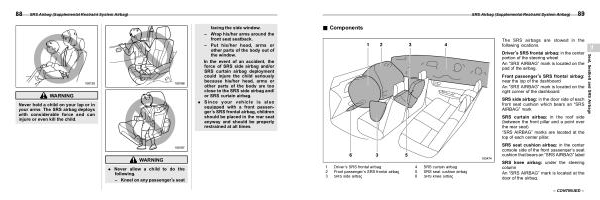

SRS Airbag ( Supplemental Restraint System Airbag ) 89
& Components s01ah11
1 Driver ’ s SRS frontal airbag 2 Front passenger ’ s SRS frontal airbag 3 SRS side airbag
4 SRS curtain airbag 5 SRS seat cushion airbag 6 SRS knee airbag
The SRS airbags are stowed in the following locations .
Driver ’ s SRS frontal airbag : in the center portion of the steering wheel
An “ SRS AIRBAG ” mark is located on the pad of the airbag .
Front passenger ’ s SRS frontal airbag : near the top of the dashboard
An “ SRS AIRBAG ” mark is located on the right corner of the dashboard .
SRS side airbag : in the door side of each front seat cushion which bears an “ SRS AIRBAG ” mark
SRS curtain airbag : in the roof side ( between the front pillar and a point over the rear seat )
“ SRS AIRBAG ” marks are located at the top of each center pillar .
SRS seat cushion airbag : in the center console side of the front passenger ’ s seat cushion that bears an “ SRS AIRBAG ” label
SRS knee airbag : under the steering column
An “ SRS AIRBAG ” mark is located at the door of the airbag .
1
Seat , Seatbelt and SRS Airbags
– CONTINUED –
