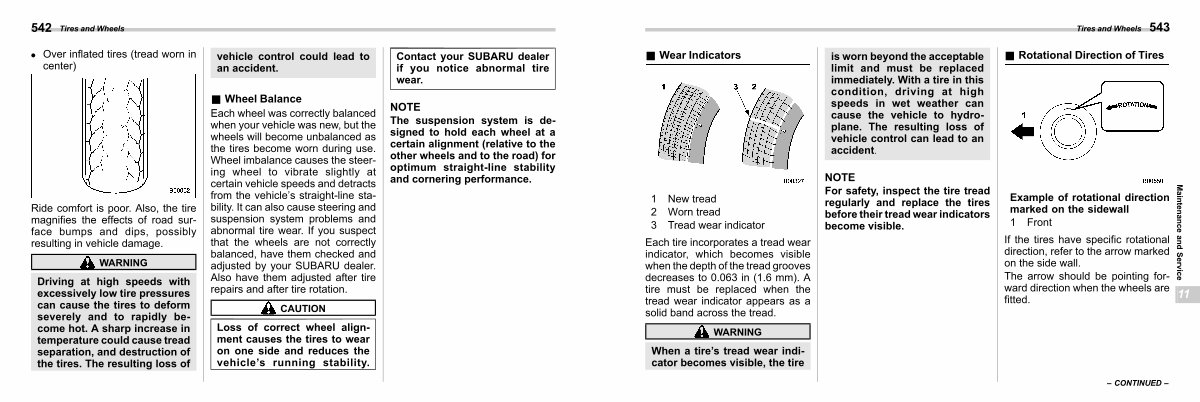

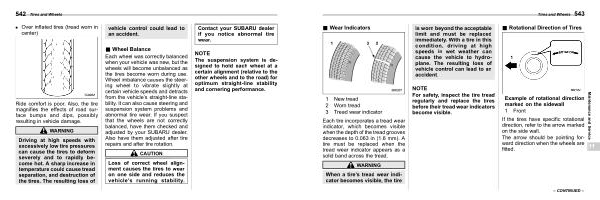

Tires and Wheels 543 |
||||||
& Wear Indicators |
s11av06 |
is worn beyond the acceptable limit and must be replaced immediately. With a tire in this condition, driving at high speeds in wet weather can cause the vehicle to hydroplane. The resulting loss of vehicle control can lead to an
accident.
|
& Rotational Direction of Tires s11av11 |
|
1 New tread 2 Worn tread 3 Tread wear indicator
Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.063 in( 1.6 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread.
|
NOTE
For safety, inspect the tire tread regularly and replace the tires before their tread wear indicators become visible.
|
Example of rotational direction marked on the sidewall
1 Front
If the tires have specific rotational direction, refer to the arrow marked on the side wall.
The arrow should be pointing forward direction when the wheels are fitted.
|
Maintenance and Service
11
|
||
WARNING |
|||||
When a tire’ s tread wear indicator becomes visible, the tire |
|||||
– CONTINUED – |
