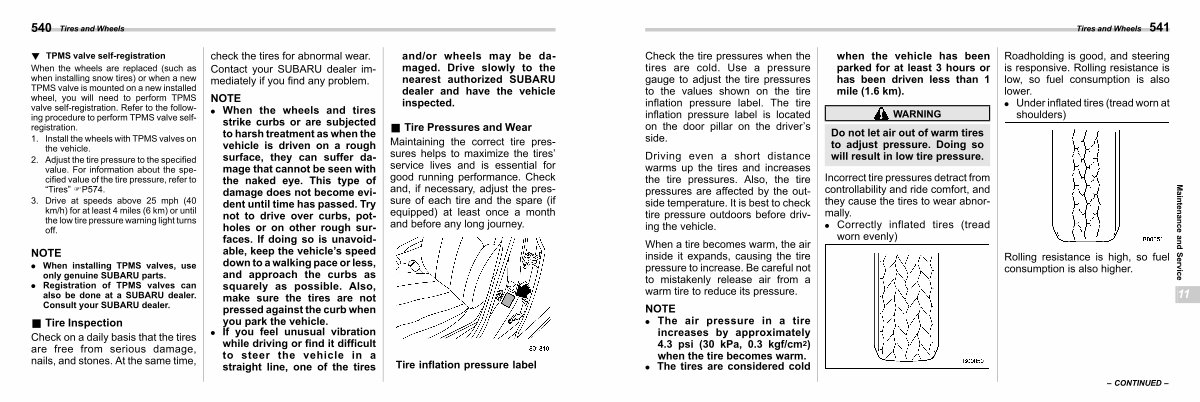

Tires and Wheels 541 |
|||||
|
Check the tire pressures when the tires are cold. Use a pressure gauge to adjust the tire pressures to the values shown on the tire inflation pressure label. The tire inflation pressure label is located on the door pillar on the driver’ s side.
Driving even a short distance warms up the tires and increases the tire pressures. Also, the tire pressures are affected by the outside temperature. It is best to check tire pressure outdoors before driving the vehicle.
When a tire becomes warm, the air inside it expands, causing the tire pressure to increase. Be careful not to mistakenly release air from a warm tire to reduce its pressure.
NOTE
. The air pressure in a tire increases by approximately 4.3 psi( 30 kPa, 0.3 kgf / cm2) when the tire becomes warm.
. The tires are considered cold
|
when the vehicle has been parked for at least 3 hours or has been driven less than 1 mile( 1.6 km).
WARNING
Do not let air out of warm tires to adjust pressure. Doing so will result in low tire pressure.
Incorrect tire pressures detract from controllability and ride comfort, and they cause the tires to wear abnormally.
. Correctly inflated tires( tread worn evenly)
|
Roadholding is good, and steering is responsive. Rolling resistance is low, so fuel consumption is also lower.
. Under inflated tires( tread worn at shoulders)
Rolling resistance is high, so fuel consumption is also higher.
|
Maintenance and Service
11
|
||
– CONTINUED – |
