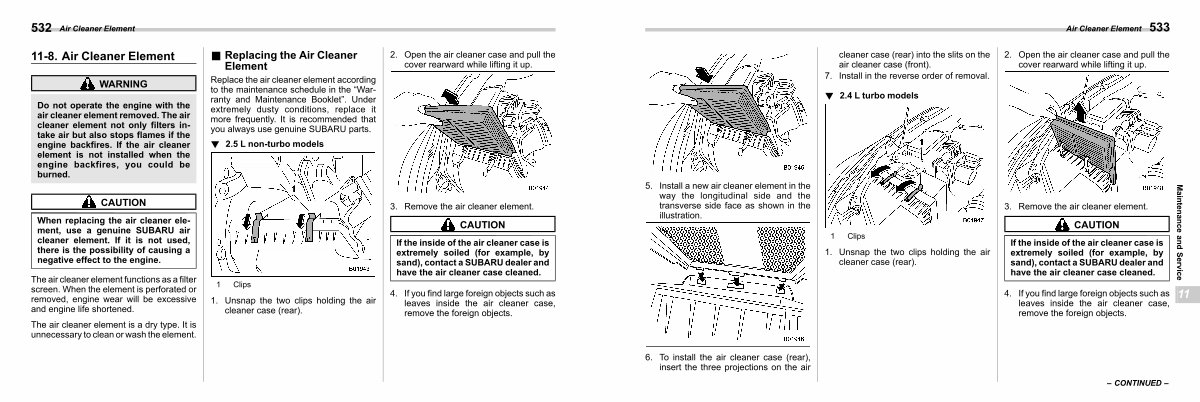

5. Install a new air cleaner element in the way the longitudinal side and the transverse side face as shown in the illustration. |
1 Clips
1. Unsnap the two clips holding the air cleaner case( rear).
|
3. Remove the air cleaner element.
CAUTION
If the inside of the air cleaner case is extremely soiled( for example, by sand), contact a SUBARU dealer and have the air cleaner case cleaned.
|
Maintenance and Service |
||
4. If you find large foreign objects such as leaves inside the air cleaner case, remove the foreign objects. |
11 |
||||
6. To install the air cleaner case( rear), insert the three projections on the air |
|||||
– CONTINUED – |
