Towing 497 |
|||||||
|

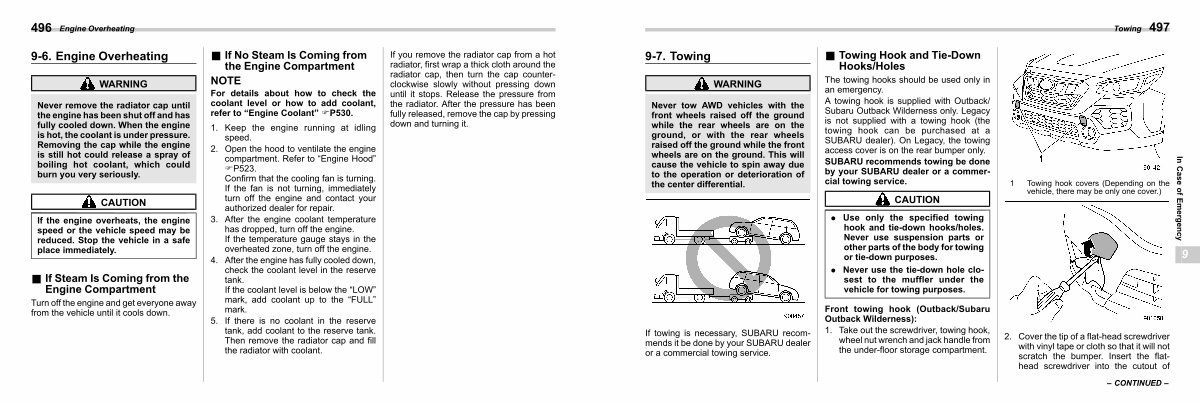

9-7. Towing
WARNING
s09af
Never tow AWD vehicles with the front wheels raised off the ground while the rear wheels are on the ground, or with the rear wheels raised off the ground while the front wheels are on the ground. This will cause the vehicle to spin away due to the operation or deterioration of the center differential.
|
& Towing Hook and Tie-Down Hooks / Holes s09af01
The towing hooks should be used only in an emergency.
A towing hook is supplied with Outback / Subaru Outback Wilderness only. Legacy is not supplied with a towing hook( the towing hook can be purchased at a SUBARU dealer). On Legacy, the towing access cover is on the rear bumper only.
SUBARU recommends towing be done by your SUBARU dealer or a commercial towing service.
|
CAUTION
. Use only the specified towing hook and tie-down hooks / holes. Never use suspension parts or other parts of the body for towing or tie-down purposes.
. Never use the tie-down hole closest to the muffler under the vehicle for towing purposes.
|
1 Towing hook covers( Depending on the vehicle, there may be only one cover.) |
In Case of Emergency
9
|
|||
If towing is necessary, SUBARU recommends it be done by your SUBARU dealer or a commercial towing service. |
Front towing hook( Outback / Subaru Outback Wilderness):
1. Take out the screwdriver, towing hook, wheel nut wrench and jack handle from the under-floor storage compartment.
|
2. Cover the tip of a flat-head screwdriver with vinyl tape or cloth so that it will not scratch the bumper. Insert the flathead screwdriver into the cutout of |
|||||
– CONTINUED – |
