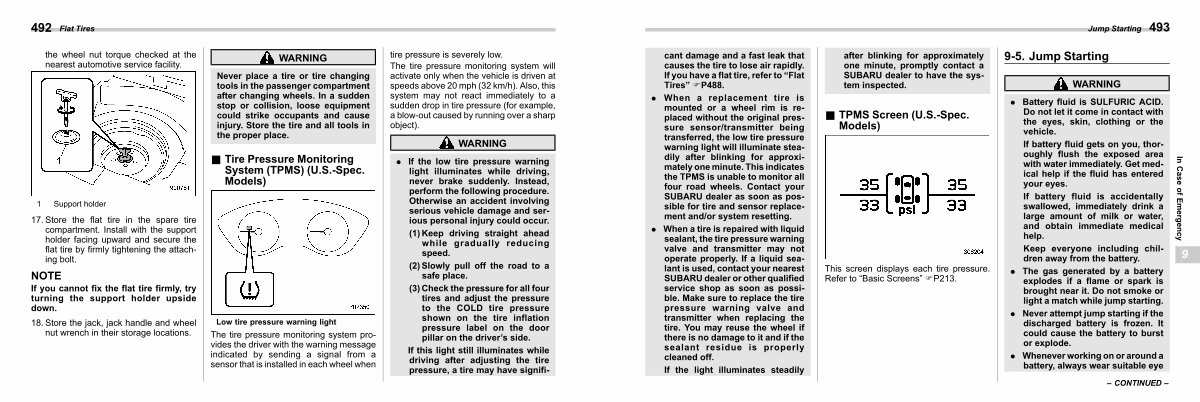

492
Flat Tires
the wheel nut torque checked at the nearest automotive service facility.
1 Support holder
17. Store the flat tire in the spare tire compartment. Install with the support holder facing upward and secure the flat tire by firmly tightening the attaching bolt.
NOTE
If you cannot fix the flat tire firmly, try turning the support holder upside down.
18. Store the jack, jack handle and wheel nut wrench in their storage locations.
WARNING
Never place a tire or tire changing tools in the passenger compartment after changing wheels. In a sudden stop or collision, loose equipment could strike occupants and cause injury. Store the tire and all tools in the proper place.
& Tire Pressure Monitoring System( TPMS)( U. S.-Spec. Models) s09ac02
Low tire pressure warning light
The tire pressure monitoring system provides the driver with the warning message indicated by sending a signal from a sensor that is installed in each wheel when
tire pressure is severely low.
The tire pressure monitoring system will activate only when the vehicle is driven at speeds above 20 mph( 32 km / h). Also, this system may not react immediately to a sudden drop in tire pressure( for example, a blow-out caused by running over a sharp object).
WARNING
. If the low tire pressure warning light illuminates while driving, never brake suddenly. Instead, perform the following procedure. Otherwise an accident involving serious vehicle damage and serious personal injury could occur.
( 1) Keep driving straight ahead while gradually reducing speed.
( 2) Slowly pull off the road to a safe place.
( 3) Check the pressure for all four tires and adjust the pressure to the COLD tire pressure shown on the tire inflation pressure label on the door pillar on the driver’ s side.
If this light still illuminates while driving after adjusting the tire pressure, a tire may have signifi-
