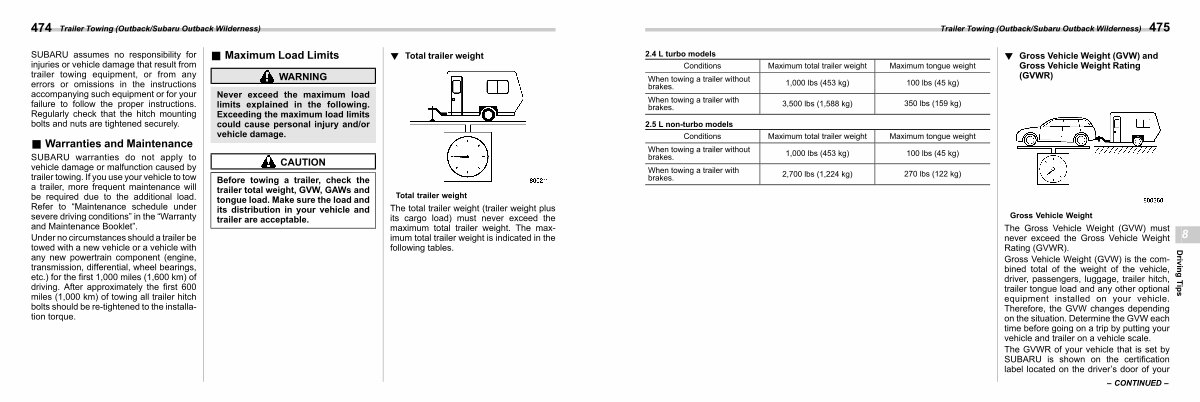

Trailer Towing( Outback / Subaru Outback Wilderness) 475
2.4 L turbo models Conditions |
Maximum total trailer weight |
Maximum tongue weight |
When towing a trailer without brakes. |
1,000 lbs( 453 kg) |
100 lbs( 45 kg) |
When towing a trailer with brakes. |
3,500 lbs( 1,588 kg) |
350 lbs( 159 kg) |
! Gross Vehicle Weight( GVW) and Gross Vehicle Weight Rating( GVWR) s08al0202
2.5 L non-turbo models Conditions |
Maximum total trailer weight |
Maximum tongue weight |
When towing a trailer without brakes. |
1,000 lbs( 453 kg) |
100 lbs( 45 kg) |
When towing a trailer with brakes. |
2,700 lbs( 1,224 kg) |
270 lbs( 122 kg) |
Gross Vehicle Weight
The Gross Vehicle Weight( GVW) must never exceed the Gross Vehicle Weight Rating( GVWR).
Gross Vehicle Weight( GVW) is the combined total of the weight of the vehicle, driver, passengers, luggage, trailer hitch, trailer tongue load and any other optional equipment installed on your vehicle. Therefore, the GVW changes depending on the situation. Determine the GVW each time before going on a trip by putting your vehicle and trailer on a vehicle scale.
The GVWR of your vehicle that is set by SUBARU is shown on the certification label located on the driver’ s door of your
– CONTINUED –
8
Driving Tips
