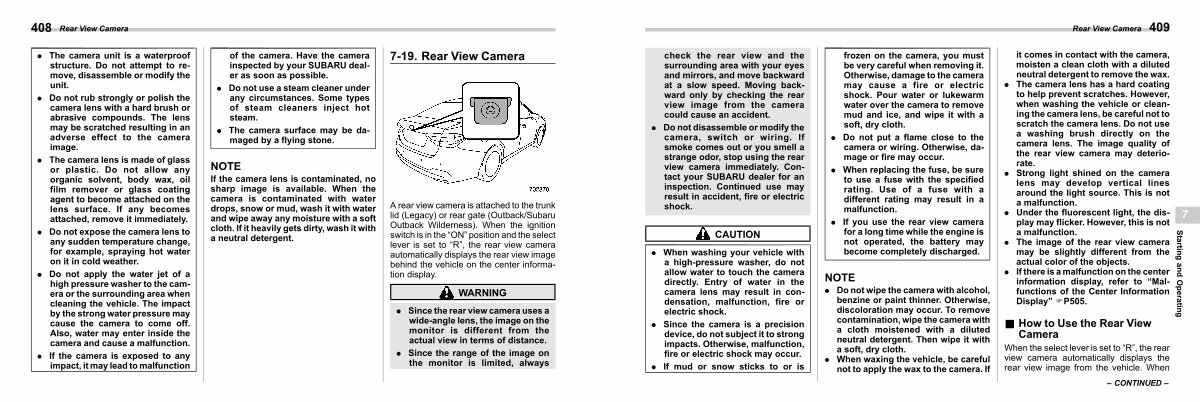

Rear View Camera 409 |
||||||
|
check the rear view and the surrounding area with your eyes and mirrors, and move backward at a slow speed. Moving backward only by checking the rear view image from the camera could cause an accident.
. Do not disassemble or modify the camera, switch or wiring. If smoke comes out or you smell a strange odor, stop using the rear view camera immediately. Contact your SUBARU dealer for an inspection. Continued use may result in accident, fire or electric shock.
|
CAUTION
. When washing your vehicle with a high-pressure washer, do not allow water to touch the camera directly. Entry of water in the camera lens may result in condensation, malfunction, fire or electric shock.
. Since the camera is a precision device, do not subject it to strong impacts. Otherwise, malfunction, fire or electric shock may occur.
. If mud or snow sticks to or is
|
frozen on the camera, you must be very careful when removing it. Otherwise, damage to the camera may cause a fire or electric shock. Pour water or lukewarm water over the camera to remove mud and ice, and wipe it with a soft, dry cloth.
. Do not put a flame close to the camera or wiring. Otherwise, damage or fire may occur.
. When replacing the fuse, be sure to use a fuse with the specified rating. Use of a fuse with a different rating may result in a malfunction.
. If you use the rear view camera for a long time while the engine is not operated, the battery may become completely discharged.
NOTE
. Do not wipe the camera with alcohol, benzine or paint thinner. Otherwise, discoloration may occur. To remove contamination, wipe the camera with a cloth moistened with a diluted neutral detergent. Then wipe it with a soft, dry cloth.
. When waxing the vehicle, be careful not to apply the wax to the camera. If
|
it comes in contact with the camera, moisten a clean cloth with a diluted neutral detergent to remove the wax.
. The camera lens has a hard coating to help prevent scratches. However, when washing the vehicle or cleaning the camera lens, be careful not to scratch the camera lens. Do not use a washing brush directly on the camera lens. The image quality of the rear view camera may deteriorate.
. Strong light shined on the camera lens may develop vertical lines around the light source. This is not a malfunction.
. Under the fluorescent light, the display may flicker. However, this is not a malfunction.
. The image of the rear view camera may be slightly different from the actual color of the objects.
. If there is a malfunction on the center information display, refer to“ Malfunctions of the Center Information Display” FP505.
& How to Use the Rear View Camera s07br01
When the select lever is set to“ R”, the rear view camera automatically displays the rear view image from the vehicle. When
|
7
Starting and Operating
|
||
– CONTINUED – |
