Storage Compartment 333 |
||||
|

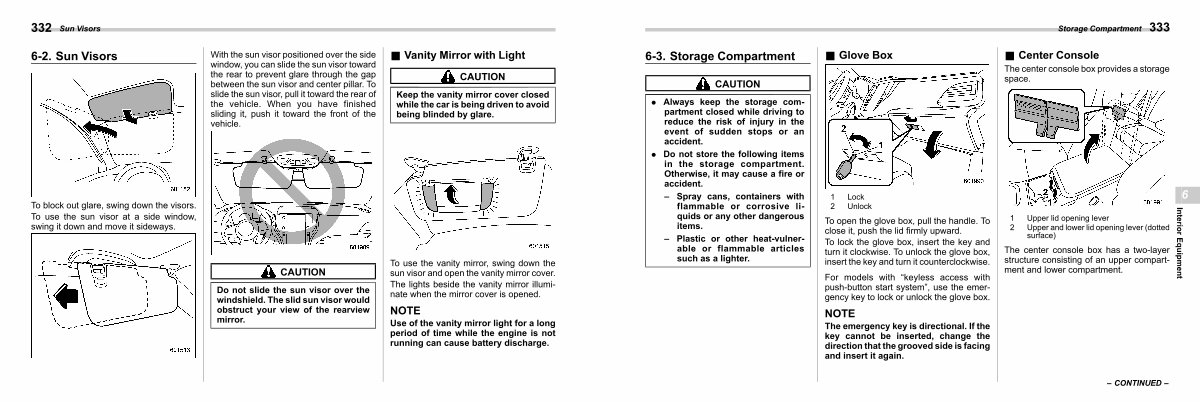

6-3. Storage Compartment
CAUTION
s06ad
|
& Glove Box |
s06ad01 |
& Center Console s06ad02
The center console box provides a storage space.
|
|
|
. Always keep the storage compartment closed while driving to reduce the risk of injury in the event of sudden stops or an accident.
. Do not store the following items in the storage compartment. Otherwise, it may cause a fire or accident.
– Spray cans, containers with flammable or corrosive liquids or any other dangerous items.
– Plastic or other heat-vulnerable or flammable articles such as a lighter.
|
1 Lock 2 Unlock
To open the glove box, pull the handle. To close it, push the lid firmly upward.
To lock the glove box, insert the key and turn it clockwise. To unlock the glove box, insert the key and turn it counterclockwise.
For models with“ keyless access with push-button start system”, use the emergency key to lock or unlock the glove box.
NOTE
The emergency key is directional. If the key cannot be inserted, change the direction that the grooved side is facing and insert it again.
|
1 Upper lid opening lever
2 Upper and lower lid opening lever( dotted surface)
The center console box has a two-layer structure consisting of an upper compartment and lower compartment.
|
6
Interior Equipment
|
|||||||
– CONTINUED – |
||||||||||
